A1-L002P001
ActivePower Dynamics, Inc.

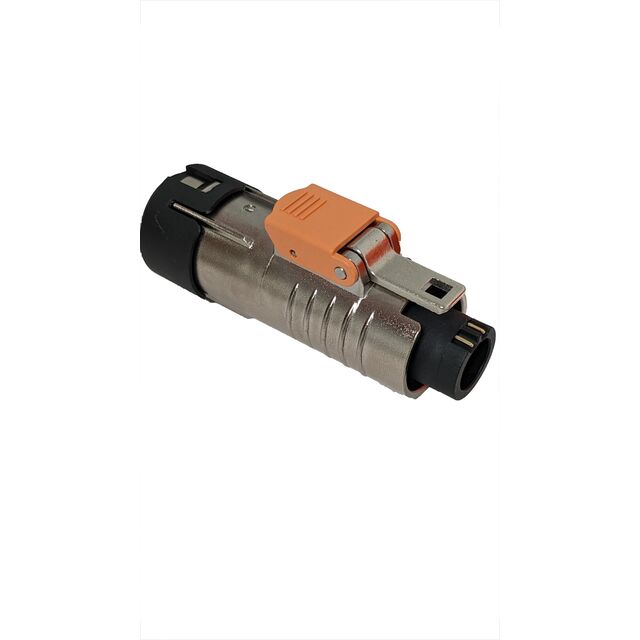

ELECTRIC VEHICLE HV PLUG
A1-L002P001
ActivePower Dynamics, Inc.
ELECTRIC VEHICLE HV PLUG
Description
General part information
A1-L002P001
2 (1 + 1 Power) Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | A1-L002P001 |
|---|---|
| Applications | Automotive |
| Backshell Material, Plating | Zinc Alloy |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Silver |
| Current Rating | 250 A |
| Fastening Type | Latch Lock |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Insert Material | Silicon Rubber |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions (Normal) | 1 |
| Number of Positions (Power) | 1 |
| Number of Positions (Total) | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -45 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Zinc |
| Shell Material | Zinc Alloy |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating (AC) | 3000 VAC |
| Voltage Rating (DC) | 1000 VDC |
