SML-LX15YGC-RP-TR

Active

Lumex Opto/Components Inc.

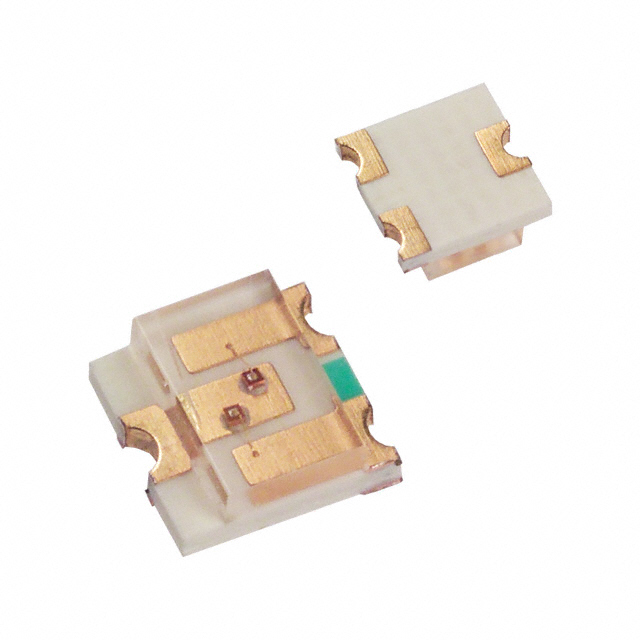

LED GRN/YLW CLEAR SOT23 SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LX15YGC-RP-TR

Active

Lumex Opto/Components Inc.

LED GRN/YLW CLEAR SOT23 SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.70
		10	$ 0.45
		100	$ 0.30
		1000	$ 0.23
	Digi-Reel®	1	$ 0.70
		10	$ 0.45
		100	$ 0.30
		1000	$ 0.23
	Tape & Reel (TR)	3000	$ 0.22
		6000	$ 0.21
		15000	$ 0.21
		30000	$ 0.20

Description

General part information

SML-LX15 Series

Green, Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow TO-236, SC-59, SOT-23-3 variant, 3-SMD

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LX15YGC-RP-TR	SML-LX15 Series

Color	Green, Yellow	Red, Green, Yellow, Blue
Configuration	Common Cathode	Standard, Common Anode, Common Cathode
Current - Test	20 mA, 20 mA	20 mA
Current - Test	-	20mA Red, 20mA Yellow
Height (Max) [Max] [z]	1 mm	1 mm
Lens Color	Colorless	Colorless
Lens Size [x]	2 mm	2 mm
Lens Size [y]	3 mm	3 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	10mcd Yellow, 10mcd Green	10mcd Yellow, 10mcd Green, 10mcd Red
Millicandela Rating	-	5 - 120 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	3-SMD, SOT-23-3 variant, SC-59, TO-236	3-SMD, SOT-23-3 variant, SC-59, TO-236
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Supplier Device Package	SOT-23	SOT-23
Viewing Angle	140 °	140 °
Voltage - Forward (Vf) (Typ)	2.2 V, 2.1 V	1.7 - 3.5 V
Wavelength - Peak	565 nm, 585 nm	525 - 700 nm
Wavelength - Peak	-	585 - 635 nm

SML-LX15 Series

LED RED CLEAR SOT23 SMD

Part	Package / Case	Configuration	Lens Color	Supplier Device Package	Color	Wavelength - Peak	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Viewing Angle	Current - Test	Lens Style	Mounting Type	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Millicandela Rating	Current - Test	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SML-LX15SIC-RP-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Red	636 nm	60 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	2 V	Clear
Lumex Opto/Components Inc. SML-LX15YGC-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Common Anode	Colorless	SOT-23	Green, Yellow	565 nm, 585 nm		3 mm	3 mm	3 mm	2 mm	140 °	20 mA, 20 mA	Rectangle with Flat Top	Surface Mount	1 mm	2.1 V, 2.2 V	Clear	10mcd Green, 10mcd Yellow
Lumex Opto/Components Inc. SML-LX15YC-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Yellow	585 nm	10 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	2.1 V	Clear
Lumex Opto/Components Inc. SML-LX15IYC-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Common Anode	Colorless	SOT-23	Red, Yellow		10 mcd, 10 mcd	3 mm	3 mm	3 mm	2 mm	140 °		Rectangle with Flat Top	Surface Mount	1 mm	2 V, 2.1 V	Clear		20mA Red, 20mA Yellow	585 nm, 635 nm
Lumex Opto/Components Inc. SML-LX15IIC-RP-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Red	635 nm	10 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	2 V	Clear
Lumex Opto/Components Inc. SML-LX15HC-RP-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Red	700 nm	5 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	2 V	Clear
Lumex Opto/Components Inc. SML-LX15USBC-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Blue		120 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	3.5 V	Clear
Lumex Opto/Components Inc. SML-LX15YC-RP-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Yellow	585 nm	10 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	2.1 V	Clear
Lumex Opto/Components Inc. SML-LX15GC-RP-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Green	565 nm	10 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	2.1 V	Clear
Lumex Opto/Components Inc. SML-LX15SRC-TR	3-SMD, SC-59, SOT-23-3 variant, TO-236	Standard	Colorless	SOT-23	Red	660 nm	20 mcd	3 mm	3 mm	3 mm	2 mm	140 °	20 mA	Rectangle with Flat Top	Surface Mount	1 mm	1.7 V	Clear
