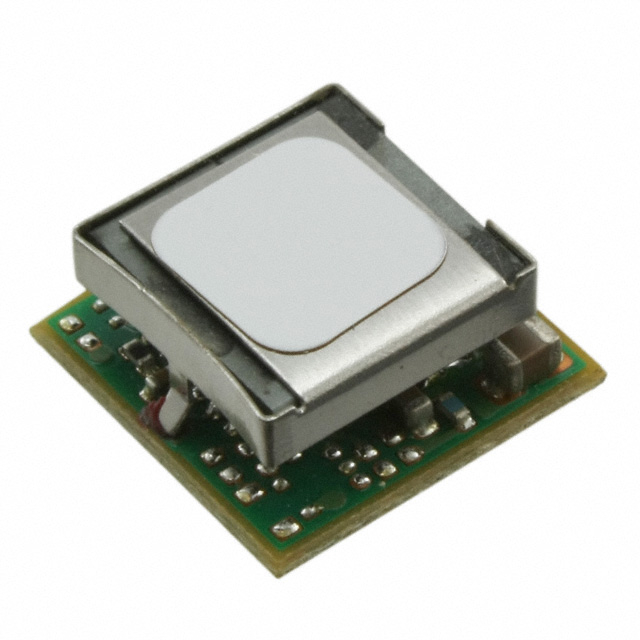

APTH006A0X-SRZ

Active

OmniOn Power™

DC DC CONVERTER 0.6-3.63V 22W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.6-3.63V 22W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APTH006A0X-SRZ	APTH006 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	6 A	6 A
Efficiency	93 %	93 %
Features	Remote On/Off, UVLO, OCP, OTP	Remote On/Off, UVLO, OCP, OTP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	10-SMD Module	10-SMD Module
Power (Watts)	22 W	22 W
Size / Dimension [x]	0.48 in	0.48 in
Size / Dimension [x]	12.2 mm	12.2 mm
Size / Dimension [y]	0.48 in	0.48 in
Size / Dimension [y]	12.2 mm	12.2 mm
Size / Dimension [z]	0.29 "	0.29 "
Size / Dimension [z]	7.3 mm	7.3 mm
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	2.4 V	2.4 V
Voltage - Output 1 [Max]	3.63 V	3.63 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

DC DC CONVERTER 0.6-3.63V 22W

Part	Power (Watts)	Voltage - Input (Max) [Max]	Control Features	Voltage - Input (Min) [Min]	Type	Features	Efficiency	Package / Case	Applications	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type
OmniOn Power™ APTH006A0X4-SRZ	22 W	5.5 V	Active High, Enable	2.4 V	Non-Isolated PoL Module	OCP, OTP, Remote On/Off, UVLO	93 %	10-SMD Module	ITE (Commercial)	1	0.29 "	0.48 in	12.2 mm	0.48 in	7.3 mm	12.2 mm	6 A	85 °C	-40 °C	3.63 V	0.6 V	Surface Mount
OmniOn Power™ APTH006A0X-SRZ	22 W	5.5 V	Active Low, Enable	2.4 V	Non-Isolated PoL Module	OCP, OTP, Remote On/Off, UVLO	93 %	10-SMD Module	ITE (Commercial)	1	0.29 "	0.48 in	12.2 mm	0.48 in	7.3 mm	12.2 mm	6 A	85 °C	-40 °C	3.63 V	0.6 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.63V 6A 2.4V - 5.5V Input
