2530-5002UB
Active3M

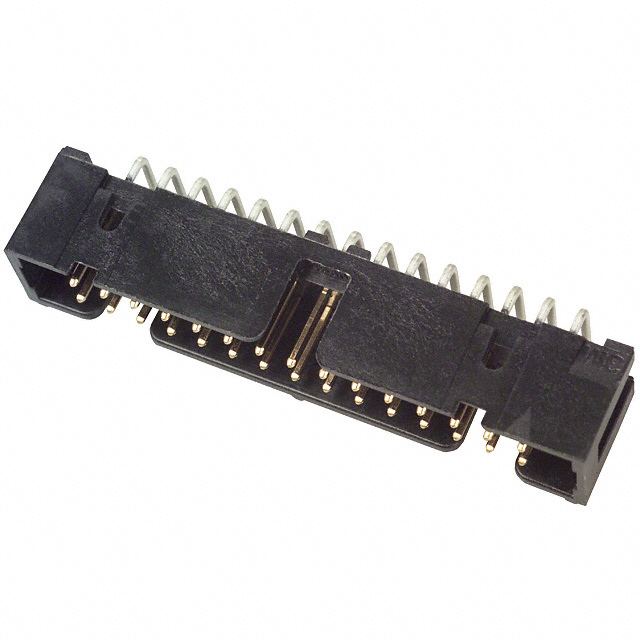

CONN HEADER R/A 30POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2530-5002UB
Active3M
CONN HEADER R/A 30POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2530-5002UB | 2530 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 15 - 30 µin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.38 - 0.76 µm |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Post | 2.84 mm | 2.84 - 3.94 mm |
| Contact Length - Post | 0.112 in | 0.112 - 0.155 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.75 A | 1.75 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black, Gray |
| Insulation Height | 0.338 in | 0.338 in |
| Insulation Height | 8.59 mm | 8.59 mm |
| Insulation Height | - | 9.91 mm |
| Insulation Height | - | 0.39 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Through Hole |
| Number of Positions | 30 | 30 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
2530 Series
CONN SHROUDED HEADER (4 SIDES) HDR 30 POS 2.54MM SOLDER RA THRU-HOLE BOX
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Shape | Fastening Type | Contact Finish - Mating | Insulation Material | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Connector Type | Number of Rows | Style | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Number of Positions Loaded | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination | Features | Contact Finish - Post | Contact Material | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15 µin | 0.38 µm | UL94 V-0 | Square | Push-Pull | Gold | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 30 | 0.1 in | 2.54 mm | 2.84 mm | 0.112 in | Header | 2 | Board to Board, Cable | Male Pin | 200 µin | 5.08 µm | 0.338 in | 8.59 mm | All | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Through Hole, Right Angle | Black | 105 ░C | -55 °C | 1.75 A | Solder | Keying Slot | Tin-Lead | Copper Alloy | |||
15 µin | 0.38 µm | UL94 V-0 | Square | Push-Pull | Gold | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 30 | 0.1 in | 2.54 mm | 3.94 mm | 0.155 " | Header | 2 | Board to Board, Cable | Male Pin | 200 µin | 5.08 µm | All | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Through Hole | Gray | 105 ░C | -55 °C | 1.75 A | Solder | Keying Slot | Tin-Lead | Copper Alloy | 9.91 mm | 0.39 in | |||
30 Áin | 0.76 Ám | UL94 V-0 | Square | Push-Pull | Gold | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 30 | 0.1 in | 2.54 mm | 2.84 mm | 0.112 in | Header | 2 | Board to Board, Cable | Male Pin | 200 µin | 5.08 µm | 0.338 in | 8.59 mm | All | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Through Hole, Right Angle | Black | 105 ░C | -55 °C | 1.75 A | Solder | Keying Slot | Tin-Lead | Copper Alloy |
