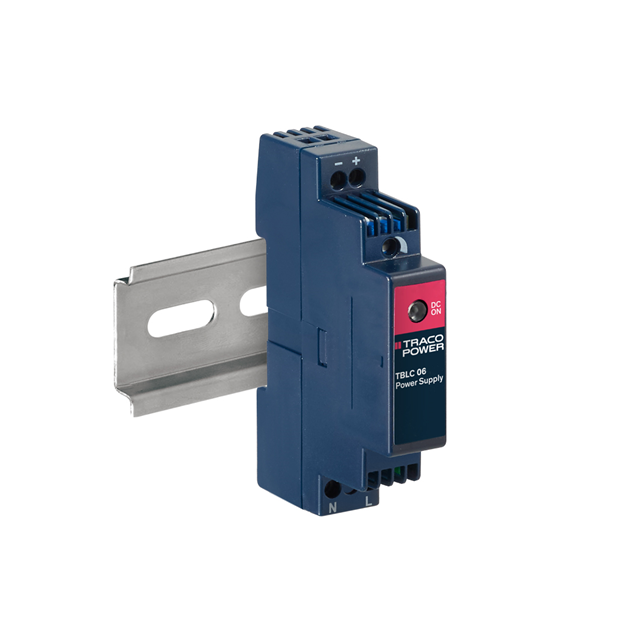

TBLC 06-105

Active

Traco Power

AC/DC DIN RAIL SUPPLY 5V 6W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 5V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	TBLC 06-105

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Household Appliances
Approval Agency	CB, CE, SIQ, cURus, cULus
Current - Output (Max) [Max]	1.2 A
Efficiency	74 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	6 W
Size / Dimension [x]	54.6 mm
Size / Dimension [x]	2.15 "
Size / Dimension [y]	0.71 in
Size / Dimension [y]	18 mm
Size / Dimension [z]	89.4 mm
Size / Dimension [z]	3.52 "
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

AC/DC DIN RAIL SUPPLY 5V 6W

Part	Current - Output (Max) [Max]	Voltage - Output 1	Applications	Number of Outputs	Voltage - Isolation	Input Type	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Approval Agency
Traco Power TBLC 06-105	1.2 A	5 V	Household Appliances, Industrial, ITE (Commercial)	1	3000 V	AC	74 %	0.71 in	54.6 mm	2.15 "	89.4 mm	18 mm	3.52 "	6 W	85 VAC	264 VAC	-25 °C	70 °C	Adjustable Output, IP20, Universal Input	CB, CE, cULus, cURus, SIQ

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 5V 6W
