PE-53690NL
ActivePulse Electronics
FIXED IND 810NH 14.3A 2.5MOHM SM
PE-53690NL
ActivePulse Electronics
FIXED IND 810NH 14.3A 2.5MOHM SM
Description
General part information
PE-53690NL

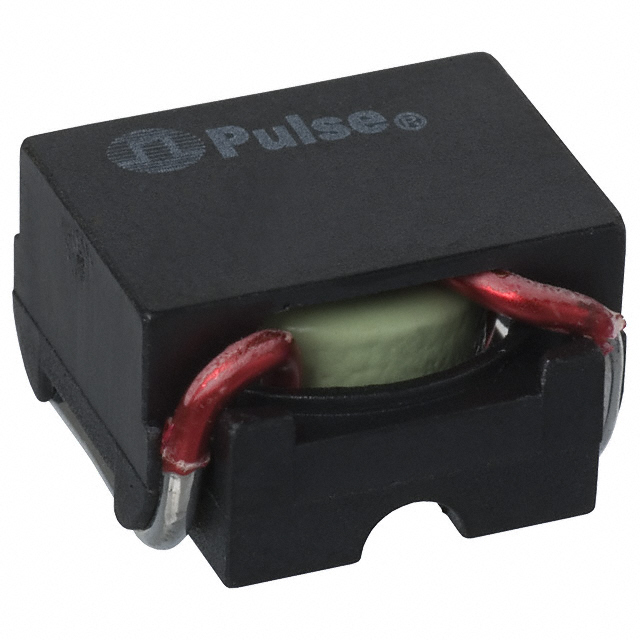

810 nH Unshielded Toroidal Inductor 14.3 A 2.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53690NL |
|---|---|
| Current Rating | 14.3 A |
| DC Resistance (DCR) (Max) | 2.5 mOhm |
| Height - Seated (Max) | 0.37 in |
| Inductance | 810 nH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.62 in |
| Size / Dimension Width | 0.605 in |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
