1406546
ActivePhoenix Contact
INSERT 46POS CRIMP
1406546
ActivePhoenix Contact
INSERT 46POS CRIMP
Description
General part information
1406546

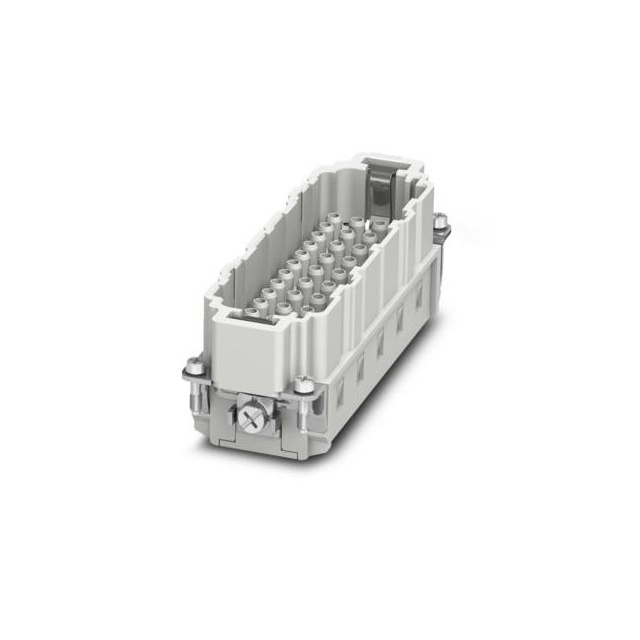

Male Insert without Contacts 46+Ground Position Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 1406546 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CK 2.5-ED |
| Current Rating | 16 A |
| Gender | Male |
| Housing Material | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 46 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Ground |
| Size | B24 |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
