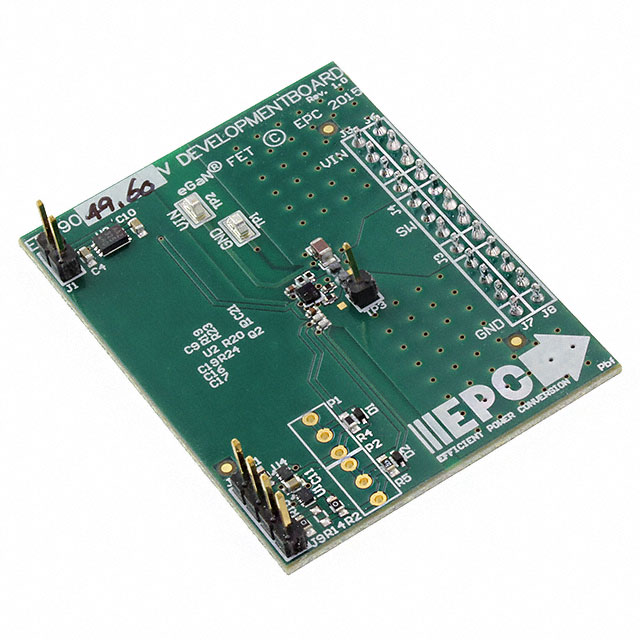

EPC9049
EPC2035 Half H-Bridge Driver (External FET) Power Management Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC9049 |
|---|---|
| Contents | Board |
| Embedded | No |
| Function | Half H-Bridge Driver (External FET) |
| Primary Attributes | 60V, 4A Max Output GaNFET Capability |
| Secondary Attributes (GaNFET Driver Circuit Uses) - Maximum | 12 V |
| Secondary Attributes (GaNFET Driver Circuit Uses) - Minimum | 7 V |
| Supplied Contents | Board(s) |
| Supply Voltage (Maximum) | 12 V |
| Supply Voltage (Minimum) | 7 V |
| Type | Power Management |
| Utilized IC / Part | EPC2035 |
