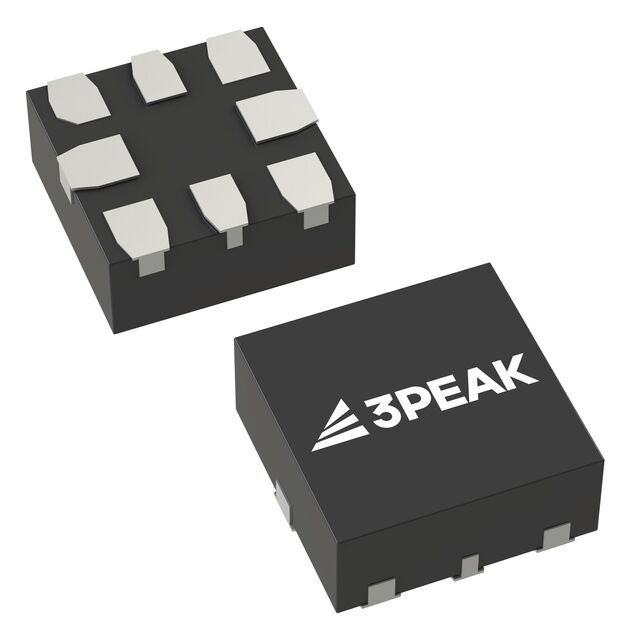

TPR3325-QF11R-S

Active

3PEAK

IC VREF SERIES 8UFQFN

Search across all available documentation for this part.

Active

3PEAK

IC VREF SERIES 8UFQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

IC VREF SERIES SOT23-3

Part	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Noise - 0.1Hz to 10Hz	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Temperature Coefficient	Mounting Type	Reference Type	Package / Case	Tolerance	Output Type	Voltage - Output (Min/Fixed)
3PEAK TPR3325-S3TR	180 µA	125 °C	-40 °C	50 µVp-p	SOT-23G-3	5.5 V	2.55 V	30 ppm/°C	Surface Mount	Series	SC-59, SOT-23-3, TO-236-3	0.15 %	1.81 mOhm	2.5 V
3PEAK TPR3325-QF11R-S	180 µA	125 °C	-40 °C	50 µVp-p	8-QFN (1.5x1.5)	5.5 V	2.55 V	30 ppm/°C	Surface Mount	Series	8-UFQFN	0.15 %	1.81 mOhm	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Series Voltage Reference IC Fixed 2.5V V ±0.15% 8-QFN (1.5x1.5)
