FM51242
ActiveFairview Microwave
ANTENNA 4.3-10 JACK 617 MHZ-6 GH
FM51242
ActiveFairview Microwave
ANTENNA 4.3-10 JACK 617 MHZ-6 GH
Description
General part information
FM51242

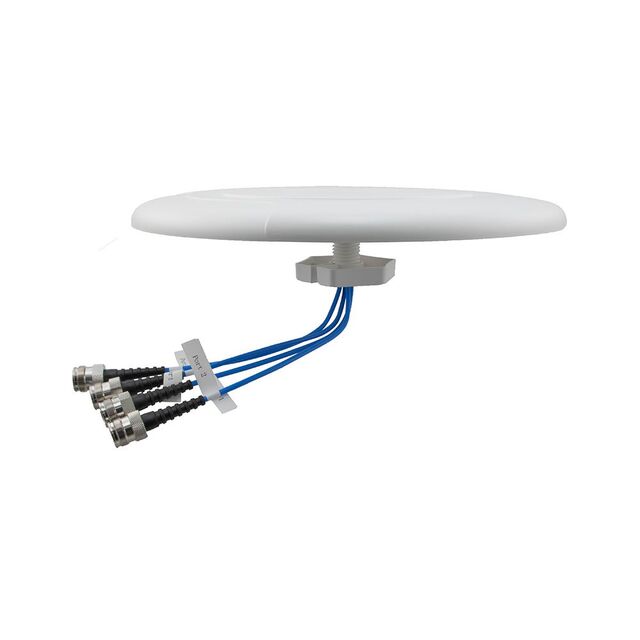

RF ANTENNA 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M Dome 4.3/10 - Female Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FM51242 |
|---|---|
| Antenna Type | Dome |
| Applications | LoRa, CDMA, LTE-M, GSM, 5G, IoT, M2M, LPWAN, NB-IoT, LTE |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 3.3085 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 6 GHz |
| Frequency Range (Min) | 617 MHz |
| Gain | 4.5 dBi |
| Height (Max) | 0.94 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination Gender | Female |
| Termination Pin Count | 10 pins |
| Termination Pitch | 4.3 mm |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
