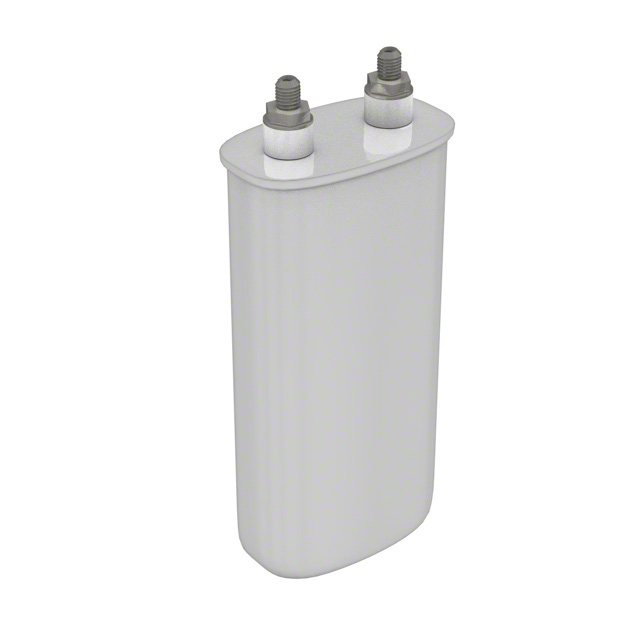

Specification	SCRN247R

Applications	Commutation, High Pulse, Switching, High Frequency, DV/DT
Capacitance	0.5 µF
Dielectric Material	Metallized, Paper
Height - Seated (Max)	2.69 in
Lead Spacing	0.81 in
Mounting Type	Bracket, Chassis Mount, Requires Holder
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Size / Dimension Length	2.16 in
Size / Dimension Width	1.31 in
Termination	Threaded, Male
Tolerance	10 %
Voltage Rating - AC	2 kVAC
