1-962918-2
ActiveTE Connectivity AMP Connectors

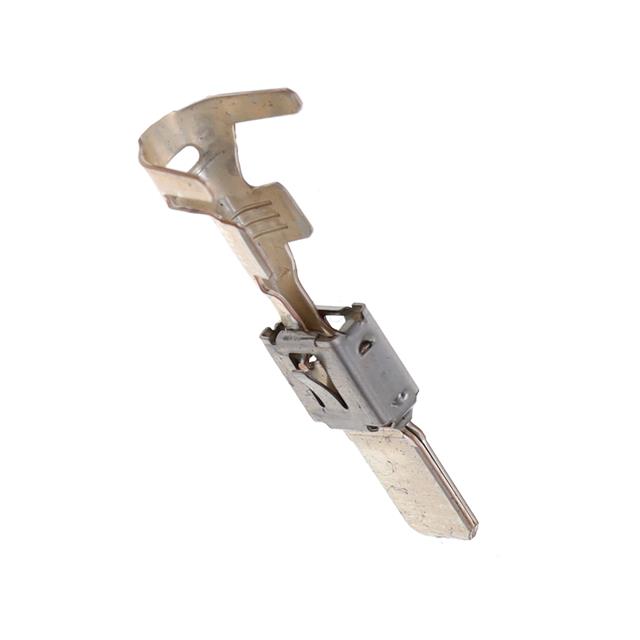

TAB 5.8X0.8 CONTACT CS SWS AG
Deep-Dive with AI
Search across all available documentation for this part.
1-962918-2
ActiveTE Connectivity AMP Connectors
TAB 5.8X0.8 CONTACT CS SWS AG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-962918-2 | 962918 Series |
|---|---|---|
| Contact Finish | Silver | Silver |
| Contact Finish Thickness | 3 µm | 3 µm |
| Contact Finish Thickness | 118.1 µin | 118.1 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Tab | Tab |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 17 AWG | 17 AWG |
| Wire Gauge [Min] | 13 AWG | 13 AWG |
962918 Series
TAB 5.8X0.8 CONTACT CS SWS AG
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pin or Socket | Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-962918-2 | 13 AWG | 17 AWG | Crimp | 3 µm | 118.1 µin | Silver | Tab | Stamped |
TE Connectivity AMP Connectors 2-962918-1 | Crimp | 3 µm | 118.1 µin | Silver | Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.02 | |
| 10 | $ 1.80 | |||
| 25 | $ 1.79 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.63 | |||
| 250 | $ 1.62 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.32 | |||
| 2500 | $ 1.22 | |||
Description
General part information
962918 Series
Tab Contact Silver 13-17 AWG Crimp Stamped
