2902829
ActivePhoenix Contact

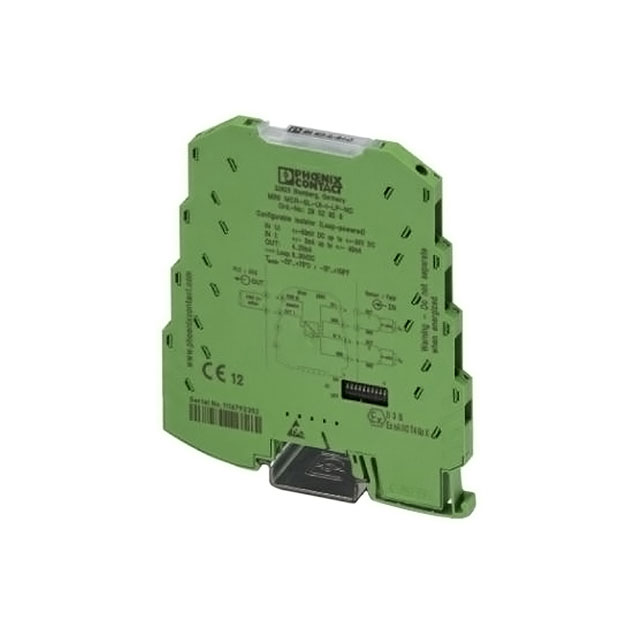

ISOLATING AMPLIFIER, 1 CHANNEL, CURRENT/VOLTAGE TO CURRENT, SCREW TERMINAL, MINI MCR SERIES
2902829
ActivePhoenix Contact
ISOLATING AMPLIFIER, 1 CHANNEL, CURRENT/VOLTAGE TO CURRENT, SCREW TERMINAL, MINI MCR SERIES
Description
General part information
2902829
ISOLATING AMPLIFIER, 1 CHANNEL, CURRENT/VOLTAGE TO CURRENT, SCREW TERMINAL, MINI MCR SERIES
Technical Specifications
Parameters and characteristics for this part
| Specification | 2902829 |
|---|---|
| Input Current Range (Maximum) | 40 mA |
| Input Current Range (Minimum) | -40 mA |
| Input Type | Current |
| Input Voltage Range (Maximum) | 30 V |
| Input Voltage Range (Minimum) | -30 V |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | 4 mA |
| Output Type | Current |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply | Loop Powered |
| Voltage - Supply Type | Loop Powered |
