TVS06DS-21-35S
ActiveAmphenol Aerospace Operations
STRAIGHT PLUG, AP-93 FINISH, SIZ
TVS06DS-21-35S
ActiveAmphenol Aerospace Operations
STRAIGHT PLUG, AP-93 FINISH, SIZ
Description
General part information
TVS06DS-21-35S

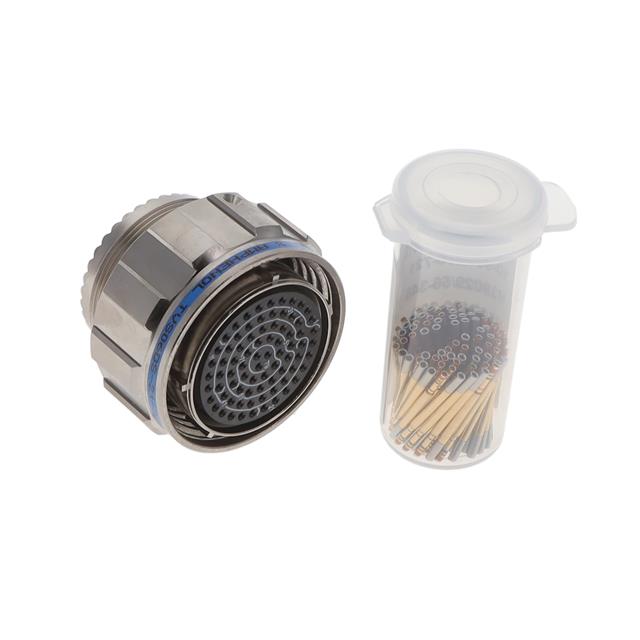

79 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | TVS06DS-21-35S |
|---|---|
| Applications | Military, Aviation, Marine |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 100 µin |
| Contact Material | Copper Alloy |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 79 |
| Orientation | N (Normal) |
| Qualification | MIL-DTL-38999 Series III |
| Shell Size - Insert (Maximum) | 35 |
| Shell Size - Insert (Minimum) | 21 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 900 VAC |
| Voltage Rating (DC) | 1250 VDC |
