Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2966265 | 29662 Series |
|---|---|---|
| Approval Agency | cULus, DNV, UL, EAC | cULus, DNV, UL, EAC, UKCA, CE |
| Coil Current | 9 mA | 3.2 - 11 mA |
| Coil Resistance | 2.67 kOhms | 2.18 - 71.88 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), SPST-NO (1 Form A), SPST-NC (1 Form B) |
| Contact Material | Silver (Ag), Gold (Au) | Silver (Ag), Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 50 mA | 6 - 50 mA |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 5 ms | 5 - 7 ms |
| Operating Temperature [Max] | 60 °C | 55 - 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 8 - 15 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
29662 Series
RELAY GEN PURPOSE SPDT 50MA 24V
| Part | Release Time | Termination Style | Mounting Type | Contact Rating (Current) | Relay Type | Contact Form | Operate Time | Features | Coil Voltage | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Coil Type | Switching Voltage | Coil Resistance | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2966278 | 15 ms | Screw Terminal | DIN Rail | 50 mA | General Purpose | SPDT (1 Form C) | 6 ms | Lighted Indicator, Socket Included | 24 VAC | Gold (Au), Silver (Ag) | -25 °C | 60 °C | cULus, DNV, EAC, UL | Non Latching | 30 VAC, 36 VDC | 2.18 kOhms | 11 mA |
Phoenix Contact 2966294 | 15 ms | Screw Terminal | DIN Rail | 50 mA | General Purpose | SPDT (1 Form C) | 7 ms | Lighted Indicator, Socket Included | 230 VAC | Gold (Au), Silver (Ag) | -25 °C | 55 °C | cULus, DNV, EAC, UL | Non Latching | 30 VAC, 36 VDC | 71.88 kOhms | 3.2 mA |
Phoenix Contact 2966210 | 8 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPST-NO (1 Form A) | 5 ms | Lighted Indicator, Socket Included | 24 VDC | Silver Tin Oxide (AgSnO) | -25 °C | 60 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 2.667 kOhms | 9 mA |
Phoenix Contact 2966265 | 8 ms | Screw Terminal | DIN Rail | 50 mA | General Purpose | SPDT (1 Form C) | 5 ms | Lighted Indicator, Socket Included | 24 VDC | Gold (Au), Silver (Ag) | -25 °C | 60 °C | cULus, DNV, EAC, UL | Non Latching | 30 VAC, 36 VDC | 2.67 kOhms | 9 mA |
Phoenix Contact 2966223 | 8 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPST-NO (1 Form A) | 5 ms | Lighted Indicator, Socket Included | 24 VDC | Silver Tin Oxide (AgSnO) | -25 °C | 60 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 2.667 kOhms | 9 mA |
Phoenix Contact 2966207 | 15 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPDT (1 Form C) | 7 ms | Lighted Indicator, Socket Included | 230 VAC | Silver Tin Oxide (AgSnO) | -25 °C | 55 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 71.875 kOhms | 3.2 mA |
Phoenix Contact 2966249 | 15 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPST-NC (1 Form B) | 6 ms | Lighted Indicator, Socket Included | 120 VAC, 120 VDC | Silver Tin Oxide (AgSnO) | -25 °C | 55 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 34.29 kOhms | 3.5 mA |
Phoenix Contact 2966252 | Screw Terminal | DIN Rail | General Purpose | SPST-NO (1 Form A) | Socket Included | 230 VAC | CE, UKCA | Non Latching |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29662 Series

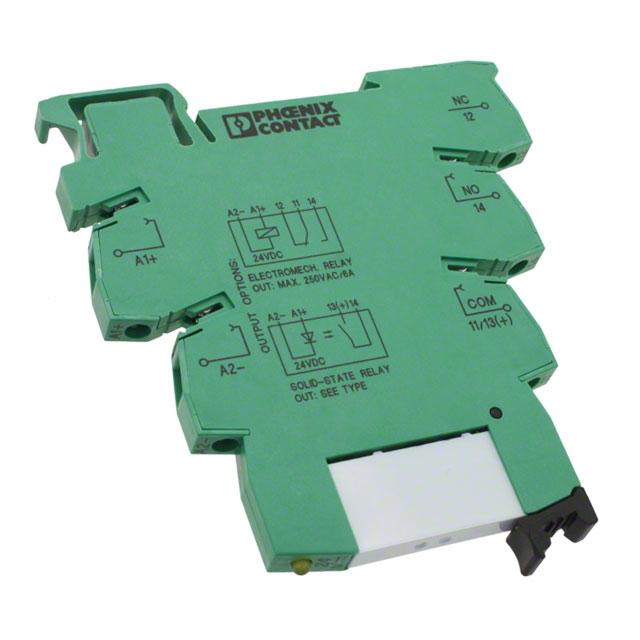

The 2966265 is a PLC Interface Relay with SPDT silver tin oxide contact, non latching coil, socket mount, quick-connect terminals and screw connection. This PLC-series features slim design, efficient connection to system cabling using V8 adapter and safe isolation according to DIN EN 50178 between coil and contact. Integrated input circuit and interference suppression circuit.
