1410303-1

Active

TE Connectivity AMP Connectors

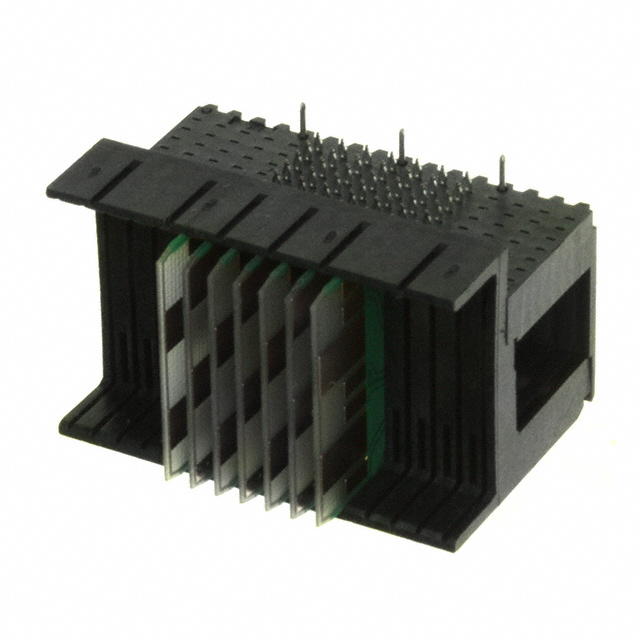

CONN PLUG VITA41 49POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA41 49POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410303-1

Color	Black
Connector Style	VITA 41, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	18
Contact Layout, Typical [custom]	14
Contact Layout, Typical [custom]	3
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	15
Number of Positions	49
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Solder
Voltage Rating	50 V

CONN PLUG VITA41 49POS EDGE MNT

Part	Termination	Voltage Rating	Connector Style	Features	Connector Usage	Number of Columns	Number of Positions	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Color	Material Flammability Rating	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows
TE Connectivity AMP Connectors 1410303-1	Solder	50 V	Center, VITA 41	Board Guide	Daughtercard	15	49	18	14	3	Board Edge, Right Angle, Through Hole	Plug, Male Blades	105 ░C	-55 °C	0.76 Ám	30 Áin	Black	UL94 V-0	Gold	0.071 in	1.8 mm	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 60.98

General part information

49 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 41, Center
