Description
General part information

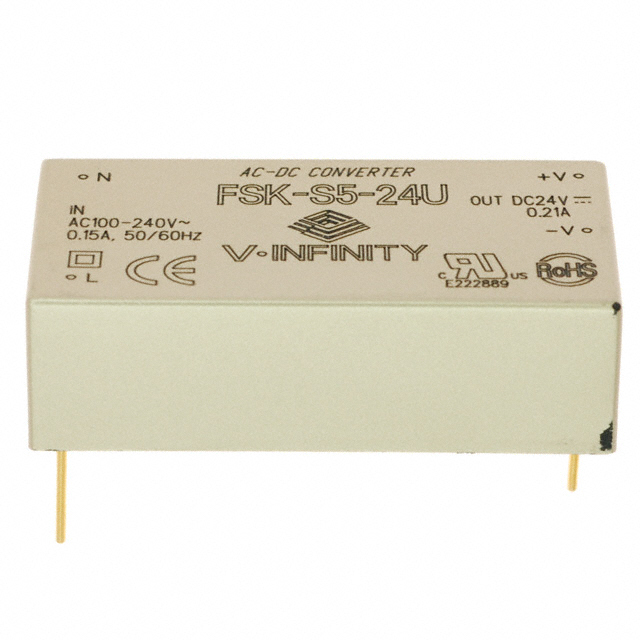

FSK-S5-24U
Enclosed AC DC Converters 1 Output 24V 210mA 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | FSK-S5-24U |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, UL, CSA |
| Current - Output (Max) | 210 mA |
| Efficiency | 77 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 4 Leads |
| Package Name | 5-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.71 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1 in |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 24 V |
| Weight | 0.089 lb |
