Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-DB-SFRP-UM(QTY:30M) |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | UHF Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Length | 98.425 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | UHF, RP-SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 332.58 | <6d |
| 10 | $ 305.25 | |||
| 25 | $ 279.08 | |||
CAD
3D models and CAD resources for this part
Description
General part information
LMR-400-DB-SFRP-UM(QTY:30M)

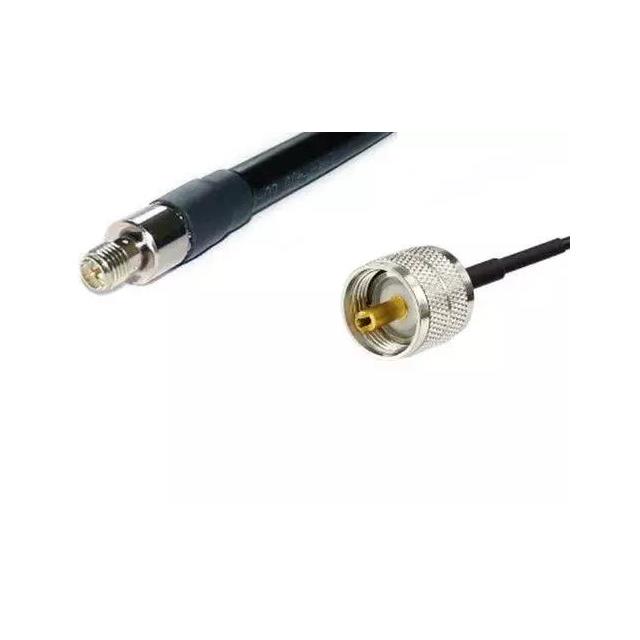

Cable Assembly Coaxial RP-SMA to UHF LMR 400 1181.1" (30.0m) 98.4'
