432200-09-0

Active

Curtis Industries

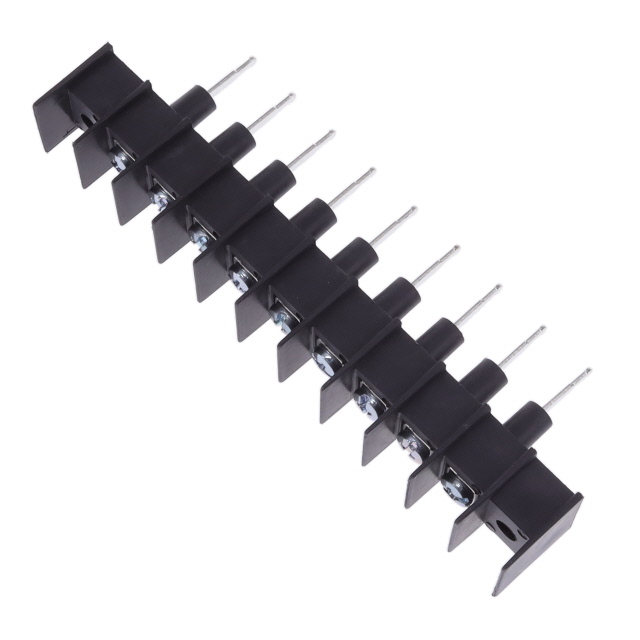

CONN BARRIER STRIP 9CIRC 0.438"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.438"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	432200-09-0	432200 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated	Solder Turret, Insulated
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	-	2 - 21
Number of Rows	1	1
Number of Wire Entries	9	2 - 21
Operating Temperature	105 C	105 C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

CONN BARRIER STRIP 2CIRC 0.438"

Part	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Barrier Type	Voltage Rating	Terminal Screw Material	Features	Number of Circuits	Terminal Block Type	Terminal Screw Finish	Material - Insulation	Operating Temperature	Bottom Termination	Current Rating (Amps)	Top Termination	Material Flammability Rating
Curtis Industries 432200-02-0	12 AWG	22 AWG	2	11.12 mm	0.438 in	Chassis, Panel	1	2 Wall (Dual)	600 V	Steel	Flange	2	Barrier Block	Zinc	Polypropylene (PP)	105 C	Solder Turret, Insulated	20 A	Screws	UL94 V-0
Curtis Industries 432200-19-0	12 AWG	22 AWG	19	11.12 mm	0.438 in	Chassis, Panel	1	2 Wall (Dual)	600 V	Steel	Flange	19	Barrier Block	Zinc	Polypropylene (PP)	105 C	Solder Turret, Insulated	20 A	Screws	UL94 V-0
Curtis Industries 432200-06-0	12 AWG	22 AWG	6	11.12 mm	0.438 in	Chassis, Panel	1	2 Wall (Dual)	600 V	Steel	Flange	6	Barrier Block	Zinc	Polypropylene (PP)	105 C	Solder Turret, Insulated	20 A	Screws	UL94 V-0
Curtis Industries 432200-21-0	12 AWG	22 AWG	21	11.12 mm	0.438 in	Chassis, Panel	1	2 Wall (Dual)	600 V	Steel	Flange	21	Barrier Block	Zinc	Polypropylene (PP)	105 C	Solder Turret, Insulated	20 A	Screws	UL94 V-0
Curtis Industries 432200-09-0	12 AWG	22 AWG	9	11.12 mm	0.438 in	Chassis, Panel	1	2 Wall (Dual)	600 V	Steel	Flange		Barrier Block	Zinc	Polypropylene (PP)	105 C	Solder Turret, Insulated	20 A	Screws	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
