ZCAT2436-1330A
ActiveTDK Corporation
FERRITE CORE CLAMP CORE 30-MATERIAL
ZCAT2436-1330A
ActiveTDK Corporation
FERRITE CORE CLAMP CORE 30-MATERIAL
Description
General part information
ZCAT2436-1330A

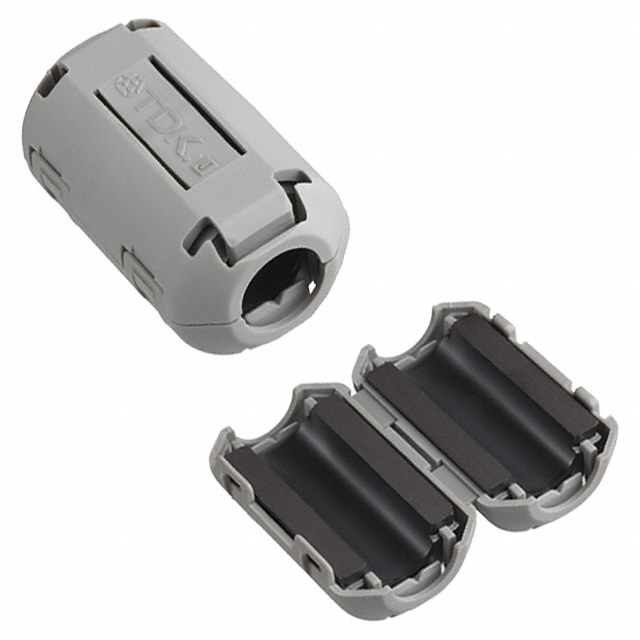

Hinged (Snap On) Free Hanging Ferrite Core 80Ohm @ 100MHz ~ 500MHz ID 0.512" Dia (13.00mm) OD 0.866" W x 0.925" H (22.00mm x 23.50mm) Length 1.417" (36.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | ZCAT2436-1330A |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 80 Ohm |
| Inner Dimension (Diameter) | 0.512 in |
| Length | 1.417 in |
| Material | 30 |
| Material Temperature Rating | 30 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.925 in |
| Outer Dimension Width | 0.866 in |
| Type | Round |
