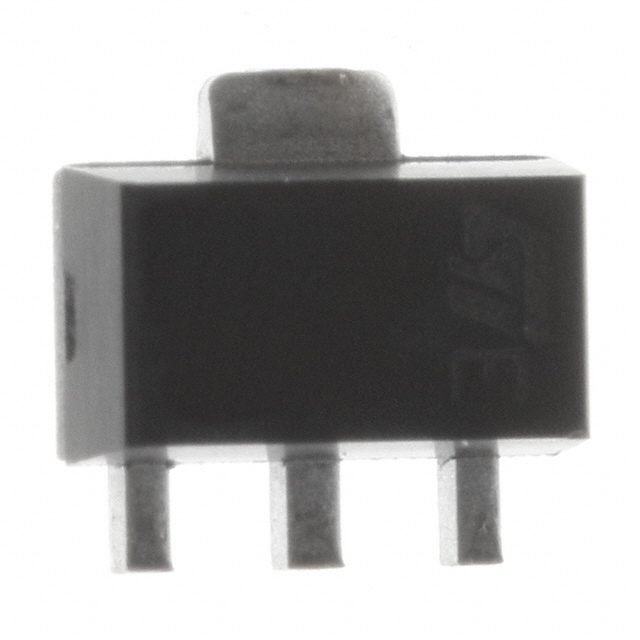

2STF2340

Active

STMicroelectronics

TRANS PNP 40V 3A SOT89-3

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS PNP 40V 3A SOT89-3

Technical Specifications

Parameters and characteristics for this part

Specification	2STF2340

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	180 hFE
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	1.4 W
Supplier Device Package	SOT-89-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	350 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRANS PNP 40V 3A SOT89-3

Part	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Current - Collector Cutoff (Max) [Max]	Package / Case	Frequency - Transition	Operating Temperature	Transistor Type	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]
STMicroelectronics 2STF2340	SOT-89-3	350 mV	Surface Mount	180 hFE	100 nA	TO-243AA	100 MHz	150 °C	PNP	1.4 W	40 V	3 A

General part information

Bipolar (BJT) Transistor PNP 40 V 3 A 100MHz 1.4 W Surface Mount SOT-89-3
