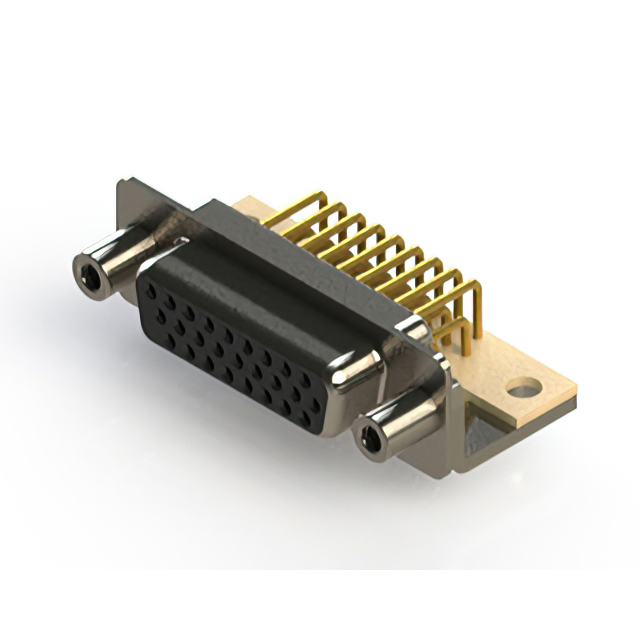

634-M26-663-BN6

Active

EDAC Inc.

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

634-M26-663-BN6

Active

EDAC Inc.

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	634-M26-663-BN6

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

634-M26 Series

Part	Features	Connector Type	Flange Feature	Dielectric Material	Connector Style	Contact Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Material Flammability Rating	Contact Material	Mounting Type	Color	Contact Finish	Termination	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 634-M26-363-BT5	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	4-40	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	Black	Gold	Solder	3	26	15 µin	0.38 µm	5 A	8.89 mm	0.35 in	-55 °C	125 °C
EDAC Inc. 634-M26-363-BN5	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	4-40	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	Black	Gold	Solder	3	26	15 µin	0.38 µm	5 A	8.89 mm	0.35 in	-55 °C	125 °C	Nickel Plated Steel
EDAC Inc. 634-M26-663-BT2	Shielded	Receptacle Female Sockets	Housing/Shell (4-40)	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	Black	Gold	Solder	3	26	30 Áin	0.76 Ám	5 A	8.89 mm	0.35 in	-55 °C	125 °C
EDAC Inc. 634-M26-263-WN4	Mounting Brackets Shielded	Receptacle Female Sockets	Housing/Shell (4-40)	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	White	Gold	Solder	3	26			5 A	8.89 mm	0.35 in	-55 °C	125 °C	Nickel Plated Steel	Flash
EDAC Inc. 634-M26-363-WN2	Shielded	Receptacle Female Sockets	Housing/Shell (4-40)	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	White	Gold	Solder	3	26	15 µin	0.38 µm	5 A	8.89 mm	0.35 in	-55 °C	125 °C	Nickel Plated Steel
EDAC Inc. 634-M26-363-WT2	Shielded	Receptacle Female Sockets	Housing/Shell (4-40)	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	White	Gold	Solder	3	26	15 µin	0.38 µm	5 A	8.89 mm	0.35 in	-55 °C	125 °C
EDAC Inc. 634-M26-263-WT6	Mounting Brackets Shielded	Receptacle Female Sockets	4-40	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	White	Gold	Solder	3	26			5 A	8.89 mm	0.35 in	-55 °C	125 °C		Flash
EDAC Inc. 634-M26-263-BT1	Shielded	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	Black	Gold	Solder	3	26			5 A	8.89 mm	0.35 in	-55 °C	125 °C		Flash
EDAC Inc. 634-M26-363-WT6	Mounting Brackets Shielded	Receptacle Female Sockets	4-40	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	White	Gold	Solder	3	26	15 µin	0.38 µm	5 A	8.89 mm	0.35 in	-55 °C	125 °C
EDAC Inc. 634-M26-663-BN6	Mounting Brackets Shielded	Receptacle Female Sockets	4-40	Polyamide (PA9T) Nylon 9T	D-Sub High Density	Signal	2	(DA A) High Density	UL94 V-0	Copper Alloy	Board Edge Right Angle Through Hole	Black	Gold	Solder	3	26	30 Áin	0.76 Ám	5 A	8.89 mm	0.35 in	-55 °C	125 °C	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 13.50

Description

General part information

634-M26 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
