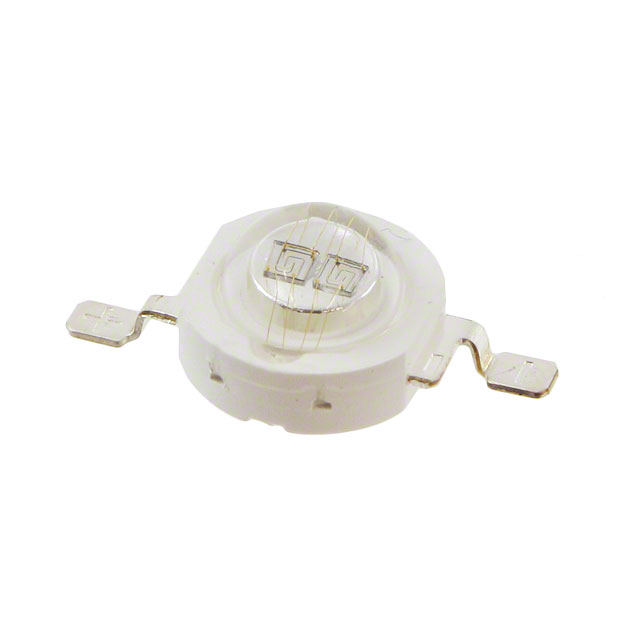

SML-LXL8047UVC

Active

Lumex Opto/Components Inc.

LED TITANBRITE PURP/UV 405NM SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE PURP/UV 405NM SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color TitanBrite™ Purple, Ultraviolet (UV) 405nm (Typ) 2-SMD, Flat Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SML-LXL8047UVC	SML-LXL8047 Series

CCT (K)	-	6000 K
Color	Purple, Ultraviolet (UV)	Yellow, Blue, Cool, White, Red, Warm, Purple, Ultraviolet (UV)
Current - Max [Max]	700 mA	1 - 700 mA
Current - Test	-	500 mA
Flux @ 25°C, Current - Test	-	140 - 160 lm
Height - Seated (Max) [Max] [z]	0.192 in	0.185 - 0.192 "
Height - Seated (Max) [Max] [z]	4.88 mm	4.7 - 4.88 mm
Lumens/Watt @ Current - Test	7 lm/W	6 - 50 lm/W
Luminous Flux @ Current/Temperature	18 lm	18 - 55 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, Flat Leads	2-SMD, Gull Wing Exposed Pad, 2-SMD, Flat Leads
Size / Dimension [diameter]	0.315 "	0.315 "
Size / Dimension [diameter]	8 mm	8 mm
Supplier Device Package	SMD	SMD
Viewing Angle	100 °	100 °
Voltage - Forward (Vf) (Typ)	3.6 V	2.5 - 4.6 V
Wavelength	405 nm	405 - 635 nm

LED TITANBRITE YELLOW 598NM SMD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Max [Max]	Color	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Mounting Type	Viewing Angle	Lumens/Watt @ Current - Test	Wavelength	Flux @ 25°C, Current - Test	CCT (K)
Lumex Opto/Components Inc. SML-LXL8047SYCTR/2	4.7 mm	0.185 "	500 mA	0.315 "	8 mm	500 mA	Yellow	2-SMD, Gull Wing Exposed Pad	SMD	2.5 V	55 lm	Surface Mount	100 °	44 lm/W	598 nm
Lumex Opto/Components Inc. SML-LXL8047USBCTR3	4.7 mm	0.185 "		0.315 "	8 mm	700 mA	Blue	2-SMD, Gull Wing Exposed Pad	SMD	4.6 V	20 lm	Surface Mount	100 °	6 lm/W	454 nm
Lumex Opto/Components Inc. SML-LXL8047UWCTR/3	4.7 mm	0.185 "		0.315 "	8 mm	1 A	Cool, White	2-SMD, Gull Wing Exposed Pad		4.6 V		Surface Mount	100 °	50 lm/W		160 lm	6000 K
Lumex Opto/Components Inc. SML-LXL8047SICTR/2	4.7 mm	0.185 "	500 mA	0.315 "	8 mm	500 mA	Red	2-SMD, Gull Wing Exposed Pad	SMD	2.7 V	50 lm	Surface Mount	100 °	37 lm/W	635 nm
Lumex Opto/Components Inc. SML-LXL8047MWCTR/3	4.7 mm	0.185 "		0.315 "	8 mm	1 A	Warm, White	2-SMD, Gull Wing Exposed Pad		4.6 V		Surface Mount	100 °	43 lm/W		140 lm
Lumex Opto/Components Inc. SML-LXL8047UVC	4.88 mm	0.192 in		0.315 "	8 mm	700 mA	Purple, Ultraviolet (UV)	2-SMD, Flat Leads	SMD	3.6 V	18 lm	Surface Mount	100 °	7 lm/W	405 nm
