145802054002829+

Obsolete

KYOCERA AVX

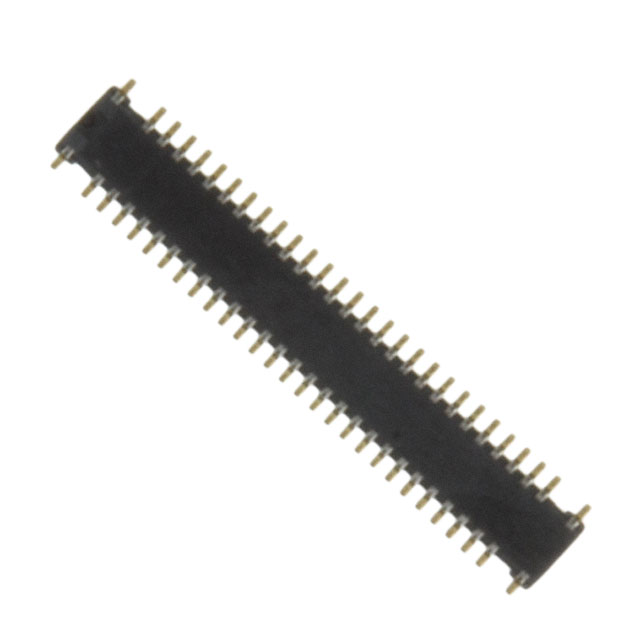

CONN PLUG 54POS SMD GOLD

Search across all available documentation for this part.

Obsolete

KYOCERA AVX

CONN PLUG 54POS SMD GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	145802054002829+	145802 Series

Connector Type	Outer Shroud Contacts, Plug	Outer Shroud Contacts, Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	4 Áin	4 Áin
Contact Finish Thickness	0.1 Ám	0.1 Ám
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	0.026 in	0.026 in
Height Above Board	0.65 mm	0.65 mm
Mated Stacking Heights	0.8 mm	0.8 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	54	44 - 54
Number of Rows	2	2
Pitch [x]	0.016 in	0.016 in
Pitch [x]	0.4 mm	0.4 mm

CONN PLUG 54POS SMD GOLD

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Contact Finish	Number of Positions	Mated Stacking Heights
KYOCERA AVX 145802054002829+	2	4 Áin	0.1 Ám	Board Guide, Solder Retention	0.026 in	0.65 mm	0.016 in	0.4 mm	Surface Mount	Outer Shroud Contacts, Plug	Gold	54	0.8 mm
KYOCERA AVX 145802044002829+	2	4 Áin	0.1 Ám	Board Guide, Solder Retention	0.026 in	0.65 mm	0.016 in	0.4 mm	Surface Mount	Outer Shroud Contacts, Plug	Gold	44	0.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

54 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
