MWA120015A-12A

Active

Inventus Power

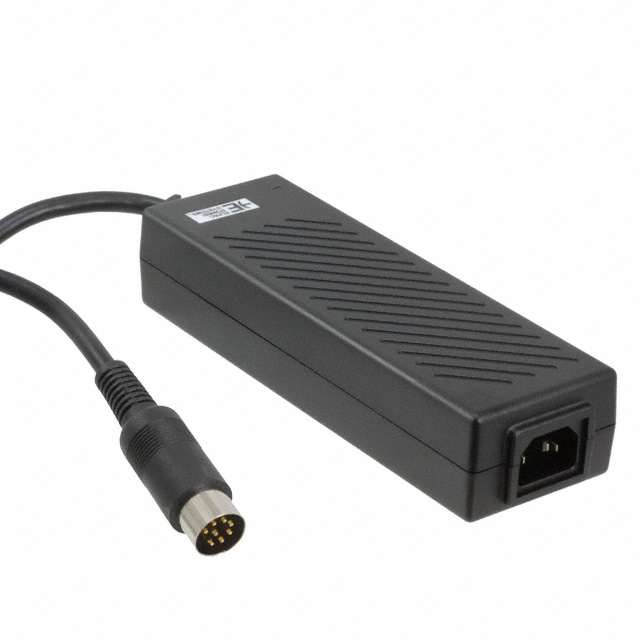

AC/DC DESKTOP ADAPTER 15V 120W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 15V 120W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 15V 120W

Part	Input Connector	Efficiency	Weight	Weight	No Load Power Consumption	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Form	Applications	Cord Length	Cord Length	Voltage - Output	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Output Connector	Output Connector	Region Utilized	Current - Output (Max) [Max]	Approval Agency
Inventus Power MWA120015A-12A	IEC 320-C14	Level V	725.7 g	1.6 lbs	500 mW	Cord	60 °C	0 °C	Desktop (Class I)	Medical	1.22 m	48 in	15 VDC	192 mm	1.52 in	7.56 "	62.2 mm	2.45 "	38.7 mm	120 W	8 Pin	DIN	International	8 A	CB, CE, cTUVus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
