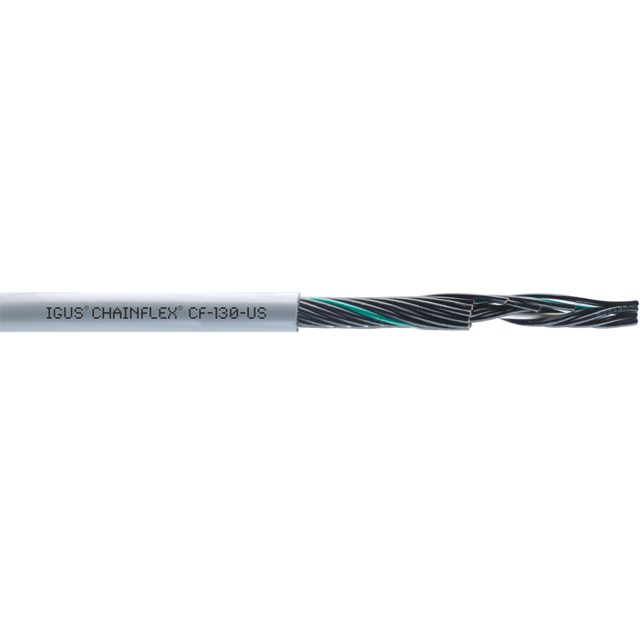

CF130US-60-04

Active

Igus

CABLE 4COND 10AWG GRAY FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF130US-60-04

Active

Igus

CABLE 4COND 10AWG GRAY FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF130US-60-04

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Features	Oil Resistant, UV Resistant, Flame Retardant
Jacket (Insulation) Diameter [diameter]	14.22 mm
Jacket (Insulation) Diameter [diameter]	0.56 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Voltage	600 V
Wire Gauge	10 AWG

CF130 Series

Part	Jacket Color	Length	Spool Size	Spool Size	Voltage	Cable Type	Ratings	Conductor Insulation	Usage	Features	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Igus CF130-03-05	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	300 V	Multi-Conductor	UL Style 20200	Thermoplastic Elastomer (TPE)	Industrial Control	Flame Retardant Rip Cord	Poly-Vinyl Chloride (PVC)	Copper Bare	5	22 AWG	5.99 mm	0.236 in
Igus CF130US-15-12	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	600 V	Multi-Conductor		Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)		Flame Retardant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	12	16 AWG	14.22 mm	0.56 "
Igus CF130US-05-07	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	600 V	Multi-Conductor		Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)		Flame Retardant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	7	20 AWG	9.65 mm	0.38 in
Igus CF130US-25-10	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	600 V	Multi-Conductor		Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)		Flame Retardant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	10	13.5 AWG	16 mm	0.63 in
Igus CF130US-15-10	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	600 V	Multi-Conductor		Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)		Flame Retardant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	10	16 AWG	14.22 mm	0.56 "
Igus CF130-10-05-UL	Gray	Enter Number of Feet in Order Quantity			300 V	Multi-Conductor	UL Style 20200	Thermoplastic Elastomer (TPE)	Industrial Control	Flame Retardant Rip Cord	Poly-Vinyl Chloride (PVC)	Copper Bare	5	17 AWG	7.49 mm	0.295 in
Igus CF130US-25-07	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	600 V	Multi-Conductor		Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)		Flame Retardant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	7	13.5 AWG	12.95 mm	0.51 in
Igus CF130-02-12	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	300 V	Multi-Conductor	UL Style 20200	Thermoplastic Elastomer (TPE)	Industrial Control	Flame Retardant Rip Cord	Poly-Vinyl Chloride (PVC)	Copper Bare	12	24 AWG	8.51 mm	0.335 "
Igus CF130US-05-03	Gray	Enter Number of Feet in Order Quantity	1000 ft	304.8 m	600 V	Multi-Conductor		Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)		Flame Retardant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	3	20 AWG	7.11 mm	0.28 in
Igus CF130US-60-04	Gray	Enter Number of Feet in Order Quantity			600 V	Multi-Conductor		Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)		Flame Retardant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	4	10 AWG	14.22 mm	0.56 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.40
		500	$ 8.07
		1000	$ 7.76

Description

General part information

CF130 Series

4 Conductor Multi-Conductor Cable Gray 10 AWG Enter Number of Feet in Order Quantity
