Description
General part information
RG405-SM-MCX(QTY:80cm)

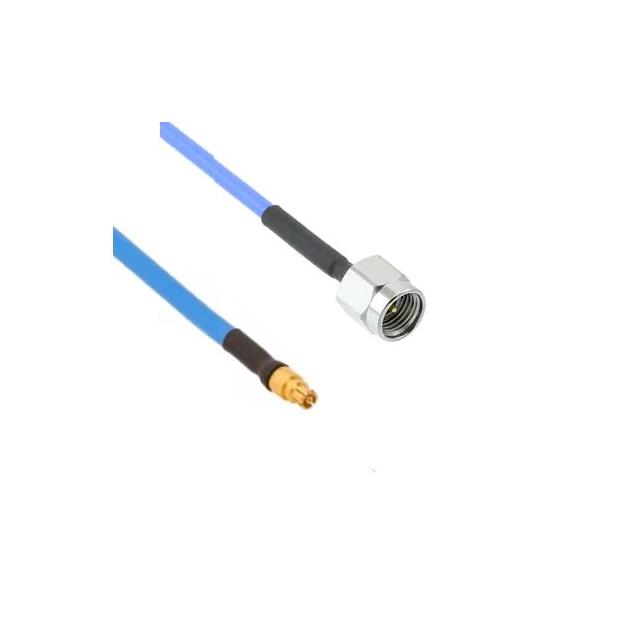

Cable Assembly Coaxial SMA to MCX RG-405 31.50" (800.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | RG405-SM-MCX(QTY:80cm) |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 405 |
| Color | Blue |
| Frequency - Max | 3 GHz |
| Length | 31.5 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Style | MCX, SMA |
