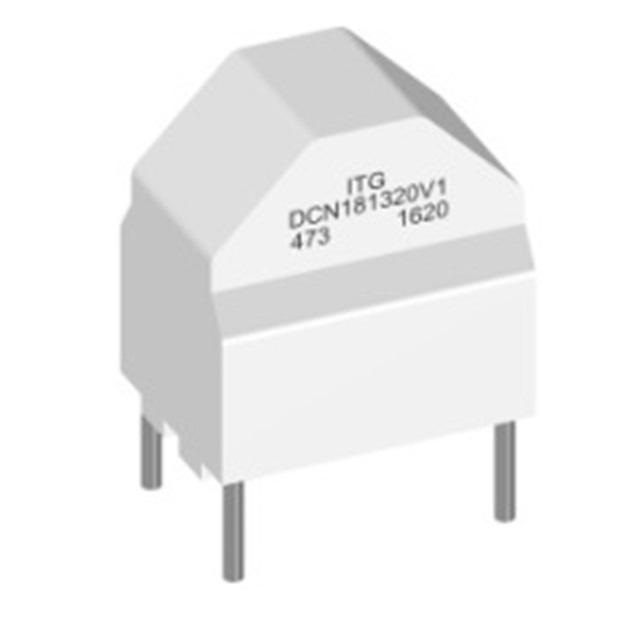

DCN181320V1-102HF
ActiveITG Electronics, Inc.
1,000UH, 16MOHM, 5.4AMP DIP CMC
DCN181320V1-102HF
ActiveITG Electronics, Inc.
1,000UH, 16MOHM, 5.4AMP DIP CMC
Description
General part information
DCN181320V1-102HF
1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5.4A DCR 16mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | DCN181320V1-102HF |
|---|---|
| Current Rating (Max) | 5.4 A |
| DC Resistance (DCR) (Max) | 16 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.807 in |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.728 in |
| Size / Dimension Width | 0.531 in |
| Voltage Rating - AC | 250 V |
