1714913
ActivePhoenix Contact

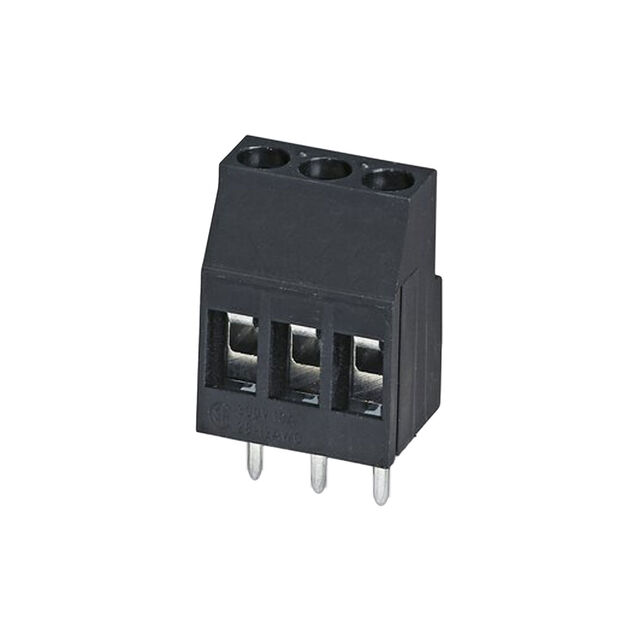

CONN TERMINAL BLOCK 3 POS 9.52MM SOLDER ST THRU-HOLE 32A CARDBOARD
1714913
ActivePhoenix Contact
CONN TERMINAL BLOCK 3 POS 9.52MM SOLDER ST THRU-HOLE 32A CARDBOARD
Description
General part information
1714913
3 Position Wire to Board Terminal Block Horizontal with Board 0.375" (9.53mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1714913 |
|---|---|
| Color | Black |
| Current | 30 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.375 in |
| Positions Per Level | 3 |
| Screw Thread | M3 |
| Torque - Screw (Maximum) | 0.6 Nm |
| Torque - Screw (Minimum) | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
