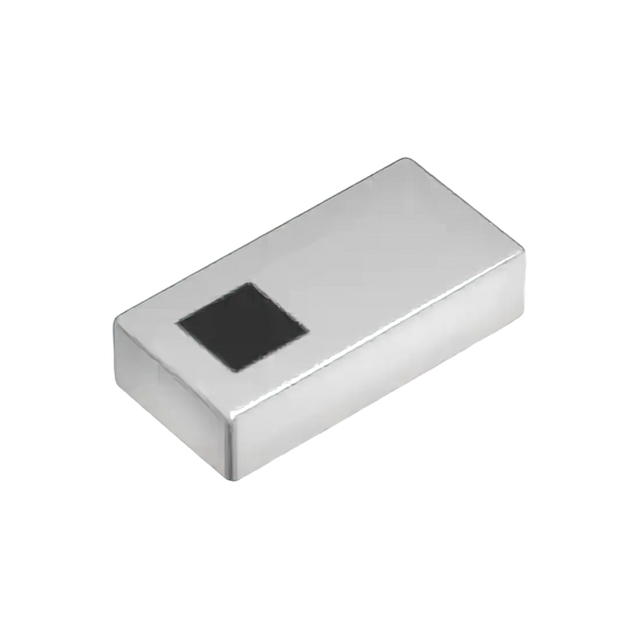

DEA165950LT-5134A1
ActiveTDK Corporation
LOW PASS FILTER, 4.9GHZ TO 5.95GHZ ROHS COMPLIANT: YES
DEA165950LT-5134A1
ActiveTDK Corporation
LOW PASS FILTER, 4.9GHZ TO 5.95GHZ ROHS COMPLIANT: YES
Description
General part information
DEA165950LT-5134A1
5.425GHz Center Frequency Low Pass RF Filter (Radio Frequency) 1.05GHz Bandwidth 0.7dB 0603 (1608 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | DEA165950LT-5134A1 |
|---|---|
| Bandwidth | 1.05 GHz |
| Filter Type | Low Pass |
| Frequency (Center) | 5.425 GHz |
| Height (Max) | 0.026 in |
| Insertion Loss | 0.7 dB |
| Mounting Type | Surface Mount |
| Package Name | 0603 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
