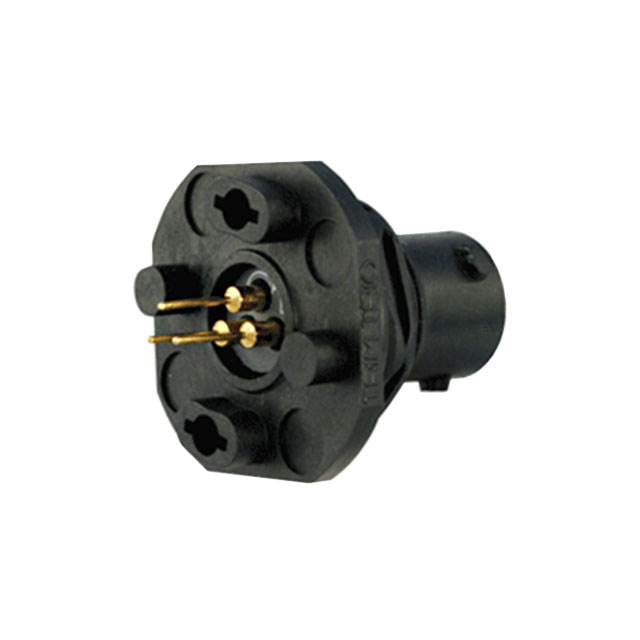

UTS78D33S

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 3POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

UTS78D33S

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 3POS GOLD SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS78D33S

Applications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	8-33
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

UTS78 Series

Part	Fastening Type	Mounting Feature	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current Rating (Amps)	Contact Finish - Mating	Shielding	Orientation	Voltage Rating	Insert Material	Ingress Protection	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Material	Number of Positions	Color	Shell Size - Insert	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Termination	Mounting Type
Souriau-Sunbank by Eaton UTS78E4P	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Male Pins Receptacle	Brass	4	Black	8-4	Plastic
Souriau-Sunbank by Eaton UTS78E98P	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Male Pins Receptacle	Brass		Black		Plastic	8	98
Souriau-Sunbank by Eaton UTS78E33P	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Male Pins Receptacle	Brass		Black	8-33	Plastic
Souriau-Sunbank by Eaton UTS78D3P	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Male Pins Receptacle	Brass		Black	8-3	Plastic			Solder	Panel Mount Through Hole
Souriau-Sunbank by Eaton UTS78D4S32	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	Board Lock UV Resistant	16 Áin	0.41 Ám	Receptacle Female Sockets	Brass	4	Black	8-4	Plastic			Solder	Panel Mount Through Hole
Souriau-Sunbank by Eaton UTS78E2S	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Receptacle Female Sockets	Brass	2	Black	8-2	Plastic
Souriau-Sunbank by Eaton UTS78E33S	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Receptacle Female Sockets	Brass		Black	8-33	Plastic
Souriau-Sunbank by Eaton UTS78E2P	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Male Pins Receptacle	Brass	2	Black	8-2	Plastic
Souriau-Sunbank by Eaton UTS78E98S	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Receptacle Female Sockets	Brass		Black		Plastic	8	98
Souriau-Sunbank by Eaton UTS78D98P	Bayonet Lock	Bulkhead - Front Side Nut	UL94 V-0	-40 °C	105 ░C	Energy Instrumentation Lighting Telecommunications	7 A	Gold	Unshielded	N	250 VDC	Polychloroprene	IP68 IP69K	UV Resistant	16 Áin	0.41 Ám	Male Pins Receptacle	Brass		Black		Plastic	8	98	Solder	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.83

Description

General part information

UTS78 Series

3 Position Circular Connector Receptacle, Female Sockets Solder
