1376386-1

Active

TE Connectivity AMP Connectors

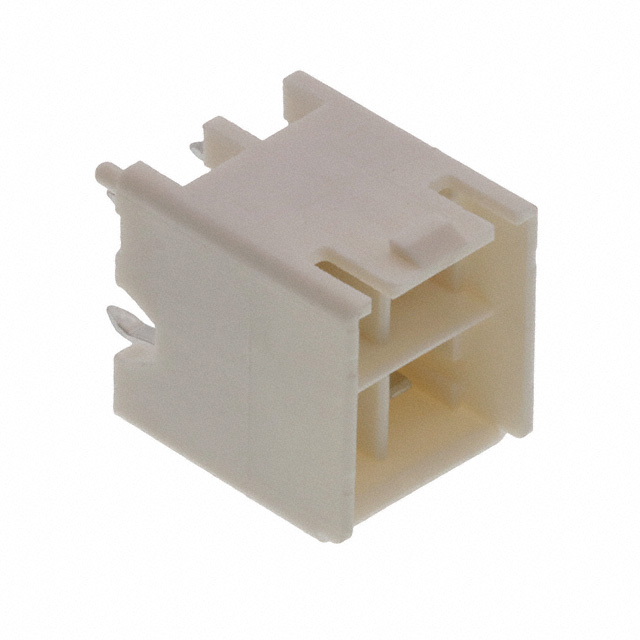

CONN HEADER VERT 4POS 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.77
		10	$ 0.72
		25	$ 0.69
		50	$ 0.69
		100	$ 0.62
		300	$ 0.60
		500	$ 0.59

Description

General part information

1376386 Series

Connector Header Through Hole 4 position 0.197" (5.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376386-1	1376386 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Glow Wire Compliant, Board Guide	Glow Wire Compliant, Board Guide
Insulation Color	Natural	Red, Blue, Natural
Insulation Height	14.1 mm	14.1 mm
Insulation Height	0.555 in	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	19.4 mm	19.4 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	5 mm	5 mm
Pitch - Mating	0.197 "	0.197 "
Row Spacing - Mating [x]	0.244 "	0.244 "
Row Spacing - Mating [x]	6.2 mm	6.2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder, Solder
Voltage Rating	300 VAC	300 VAC

1376386 Series

CONN HEADER VERT 4POS 5MM

Part	Features	Mated Stacking Heights	Contact Material	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Positions	Number of Positions Loaded	Insulation Material	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Connector Type	Number of Rows	Applications	Shrouding	Style	Mounting Type	Contact Type	Fastening Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 1-1376386-2	Board Guide, Glow Wire Compliant	19.4 mm	Copper Alloy	UL94 V-0	14.1 mm	0.555 in	3.5 mm	0.138 in	Tin	4	All	Polyamide (PA66), Nylon 6/6, Glass Filled	300 VAC	0.244 "	6.2 mm	Red	Kinked Pin, Solder	-40 °C	105 ░C	Rectangular	Header	2	General Purpose	Shrouded - 4 Wall	Board to Cable/Wire	Through Hole	Tab	Locking Ramp	Varies by Wire Gauge	5 mm	0.197 "
TE Connectivity AMP Connectors 2-1376386-3	Board Guide, Glow Wire Compliant	19.4 mm	Copper Alloy	UL94 V-0	14.1 mm	0.555 in	3.5 mm	0.138 in	Tin	4	All	Polyamide (PA66), Nylon 6/6, Glass Filled	300 VAC	0.244 "	6.2 mm	Blue	Kinked Pin, Solder	-40 °C	105 ░C	Rectangular	Header	2	General Purpose	Shrouded - 4 Wall	Board to Cable/Wire	Through Hole	Tab	Locking Ramp	Varies by Wire Gauge	5 mm	0.197 "
TE Connectivity AMP Connectors 1376386-1	Board Guide, Glow Wire Compliant	19.4 mm	Copper Alloy	UL94 V-0	14.1 mm	0.555 in	3.5 mm	0.138 in	Tin	4	All	Polyamide (PA66), Nylon 6/6, Glass Filled	300 VAC	0.244 "	6.2 mm	Natural	Kinked Pin, Solder	-40 °C	105 ░C	Rectangular	Header	2	General Purpose	Shrouded - 4 Wall	Board to Cable/Wire	Through Hole	Tab	Locking Ramp	Varies by Wire Gauge	5 mm	0.197 "
TE Connectivity AMP Connectors 5-1376386-1	Board Guide, Glow Wire Compliant	19.4 mm	Copper Alloy	UL94 V-0	14.1 mm	0.555 in	3.5 mm	0.138 in	Tin	4	All	Polyamide (PA66), Nylon 6/6, Glass Filled	300 VAC	0.244 "	6.2 mm	Natural	Solder	-40 °C	105 ░C	Rectangular	Header	2	General Purpose	Shrouded - 4 Wall	Board to Cable/Wire	Through Hole	Tab	Locking Ramp	Varies by Wire Gauge	5 mm	0.197 "
