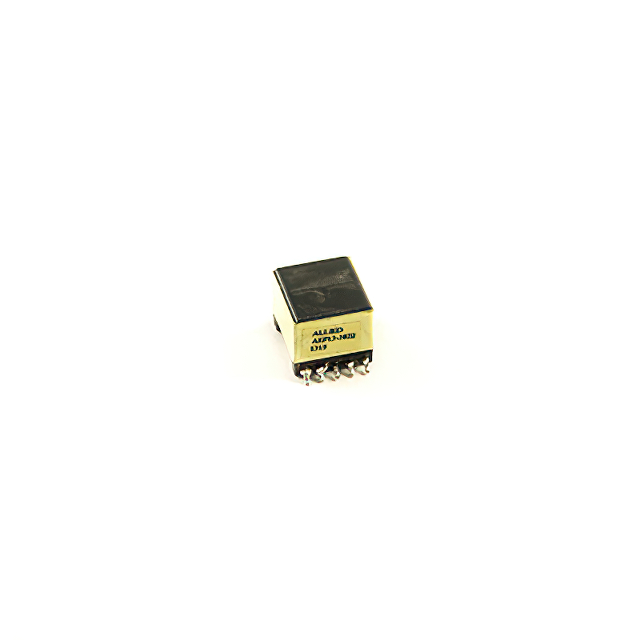

AEP13-3822
ActiveAllied Components International
PWR XFMR CHAS MT
AEP13-3822
ActiveAllied Components International
PWR XFMR CHAS MT
Description
General part information
AEP13-3822
PWR XFMR CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | AEP13-3822 |
|---|---|
| Height - Seated (Max) | 12.7 mm |
| Mounting Type | Chassis Mount |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 13.46 mm |
| Size / Dimension Width | 13.01 mm |
| Termination Style | Solder, Quick Connect |
| Voltage - Isolation | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
