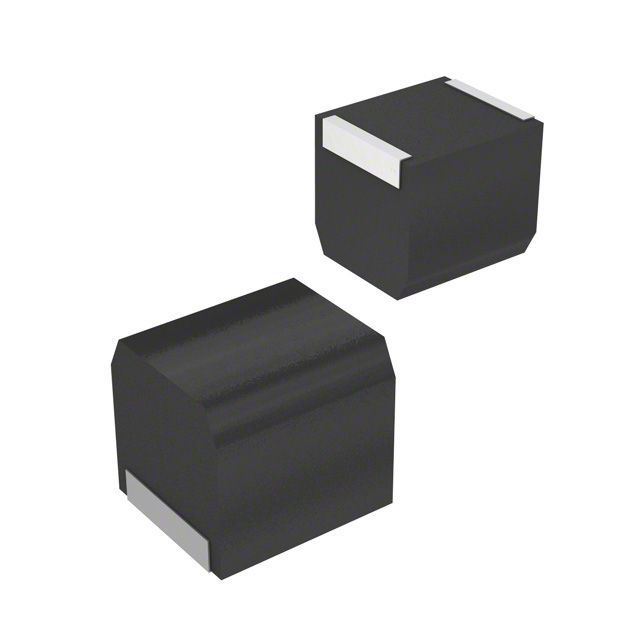

NLC565050T-330K-PF
ObsoleteTDK Corporation
WIREWOUND INDUCTOR, 33 ΜH, 0.62 OHM, 10.5 MHZ, 400 MA, 2220 [5650 METRIC], NLC SERIES
NLC565050T-330K-PF
ObsoleteTDK Corporation
WIREWOUND INDUCTOR, 33 ΜH, 0.62 OHM, 10.5 MHZ, 400 MA, 2220 [5650 METRIC], NLC SERIES
Description
General part information
NLC565050T-330K-PF
33 µH Unshielded Wirewound Inductor 400 mA 620mOhm Max 2220 (5650 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NLC565050T-330K-PF |
|---|---|
| Current Rating | 400 mA |
| DC Resistance (DCR) (Max) | 620 mOhm |
| Frequency - Self Resonant | 10.5 MHz |
| Height - Seated (Max) | 0.209 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2220 (5650 Metric) |
| Q | 10 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 10 % |
| Type | Wirewound |
