Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-PLM01A1 | X-NUCLEO-PLM01A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Power Line Communication Modem (PLC) | Power Line Communication Modem (PLC) |
| Platform | Nucleo | Nucleo |
| Type | Interface | Interface |
| Utilized IC / Part | ST7580 | ST7580 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-PLM01A1 Series
Power line communication expansion board based on ST7580 for STM32 Nucleo
| Part | Contents | Platform | Type | Function | Utilized IC / Part |
|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-PLM01A1 | |||||
STMicroelectronics X-NUCLEO-PLM01A1 | Board(s) | Nucleo | Interface | Power Line Communication Modem (PLC) | ST7580 |
STMicroelectronics X-NUCLEO-PLM01A1 |
Description
General part information
X-NUCLEO-PLM01A1 Series

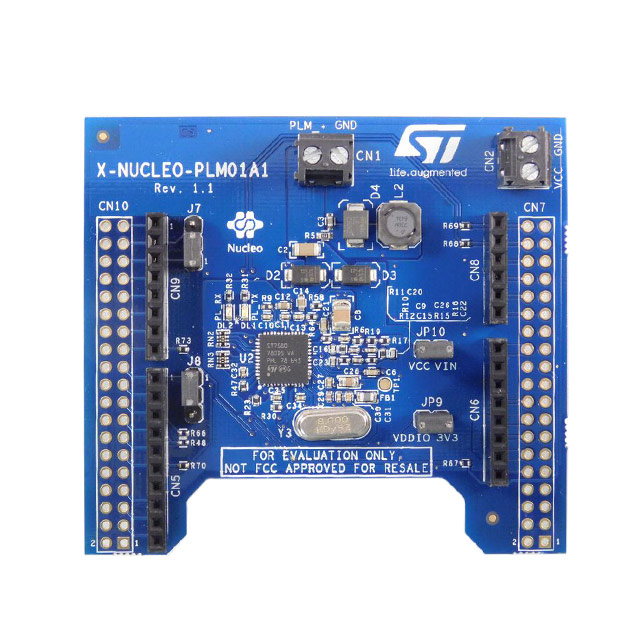

The X-NUCLEO-PLM01A1 expansion board for STM32 Nucleo is based on the ST7580 FSK, PSK multi-mode power line networking system-on-chip. It provides an affordable and easy-to-use solution for the development of connectivity applications based on power line communication. It lets you easily evaluate the communication features of the ST7580 based on a DC two-wire link between two boards.
You can also perform evaluation on an AC power line by connecting the X-NUCLEO-PLM01A1 to an STEVAL-XPLM01CPL board providing effective AC coupling and isolation. The X-NUCLEO-PLM01A1 is interfaced with the STM32 controller via UART and GPIO pins and is compatible with the Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
