II-9CS
ActiveCentury Spring Corp

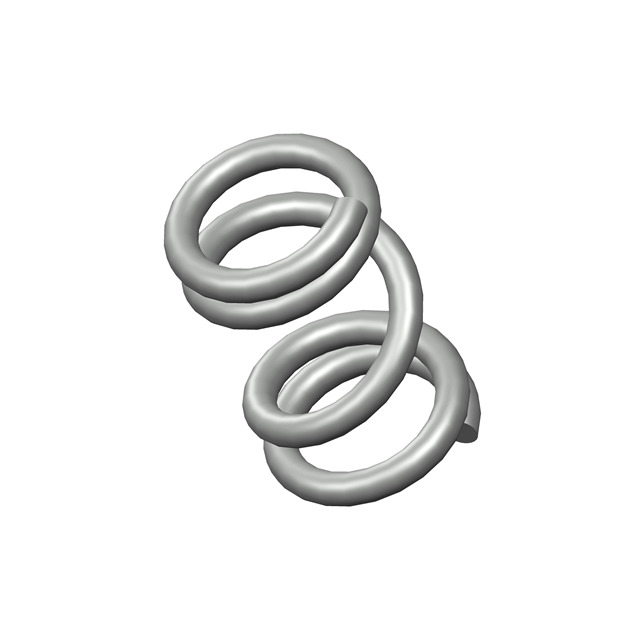

COMP MUSIC WIRE 0.140" 0.250"
II-9CS
ActiveCentury Spring Corp
COMP MUSIC WIRE 0.140" 0.250"
Description
General part information
II-9CS
COMP MUSIC WIRE 0.140" 0.250"
Technical Specifications
Parameters and characteristics for this part
| Specification | II-9CS |
|---|---|
| Diameter - Inside | 0.096 in |
| Diameter - Outside | 0.14 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.25 in |
| Material | Music Wire |
| Rate (lbs/in) | 102 lbs/in |
| Type | Compression |
| Wire Diameter | 0.022 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
