CBD-SALMGT-SARF3OGTX9-6IN
ActiveLighthorse Technologies, Inc
CBL ASSY SMA-RPSMA JACK-PLUG 6"
CBD-SALMGT-SARF3OGTX9-6IN
ActiveLighthorse Technologies, Inc
CBL ASSY SMA-RPSMA JACK-PLUG 6"
Description
General part information
CBD-SALMGT-SARF3OGTX9-6IN

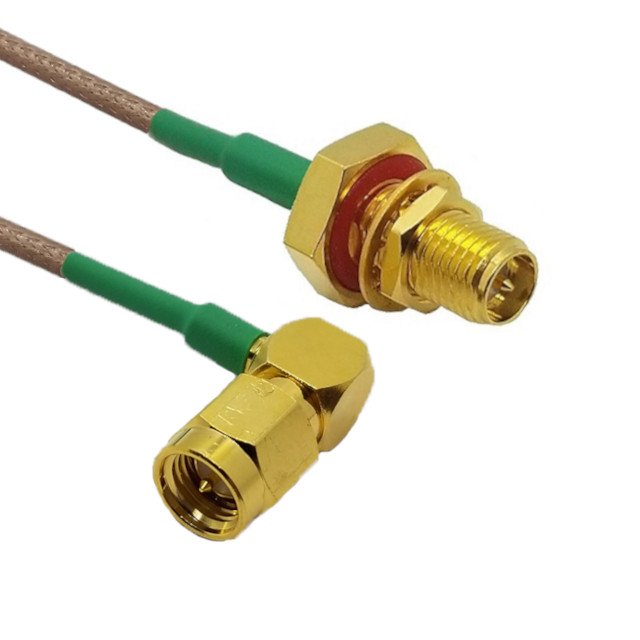

Cable Assembly Coaxial RP-SMA to SMA RG-316 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBD-SALMGT-SARF3OGTX9-6IN |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 0.5 ft |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, SMA |
