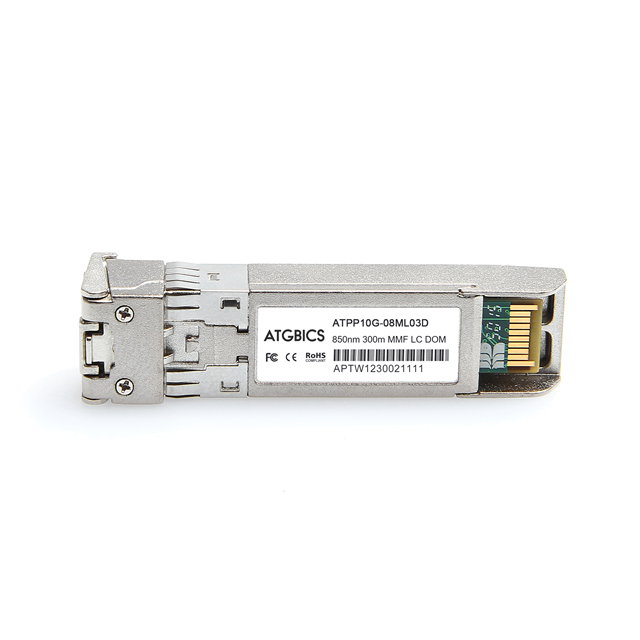

AR-SFP-10G-SR-C
ActiveATGBICS
COMPATIBLE SFP+ 10G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR-SFP-10G-SR-C
ActiveATGBICS
COMPATIBLE SFP+ 10G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AR-SFP-10G-SR-C | AR-SFP-10G Series |
|---|---|---|
| Applications | General Purpose, Networking | Ethernet, General Purpose, Networking |
| Connector Type | LC Duplex | LC, LC Duplex |
| Data Rate | 10 Gbps | 10 Gbps |
| Mounting Type | Pluggable, SFP+ | Pluggable, SFP+ |
| Voltage - Supply | 3.3 V | 3.3 V |
| Wavelength | 850 nm | 850 - 1550 nm |
AR-SFP-10G Series
10GBASE-ER SFP+ 1550NM 40KM
| Part | Data Rate | Connector Type | Wavelength | Applications | Voltage - Supply | Mounting Type |
|---|---|---|---|---|---|---|
ATGBICS AR-SFP-10G-ER-C | 10 Gbps | LC | 1550 nm | Ethernet | 3.3 V | Pluggable, SFP+ |
ATGBICS AR-SFP-10G-SRL-C | 10 Gbps | LC Duplex | 850 nm | General Purpose, Networking | 3.3 V | Pluggable, SFP+ |
ATGBICS AR-SFP-10G-SR-C | 10 Gbps | LC Duplex | 850 nm | General Purpose, Networking | 3.3 V | Pluggable, SFP+ |
ATGBICS AR-SFP-10G-LR-C | 10 Gbps | LC | 1310 nm | Ethernet | 3.3 V | Pluggable, SFP+ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 32.00 | |
| 1 | $ 98.75 | |||
| 50 | $ 30.40 | |||
| 100 | $ 93.81 | |||
| 150 | $ 28.80 | |||
| 1000 | $ 27.20 | |||
| 1000 | $ 88.88 | |||
Description
General part information
AR-SFP-10G Series
Transceiver Module Networking, General Purpose 10Gbps 850nm 3.3V LC Duplex Pluggable, SFP+
