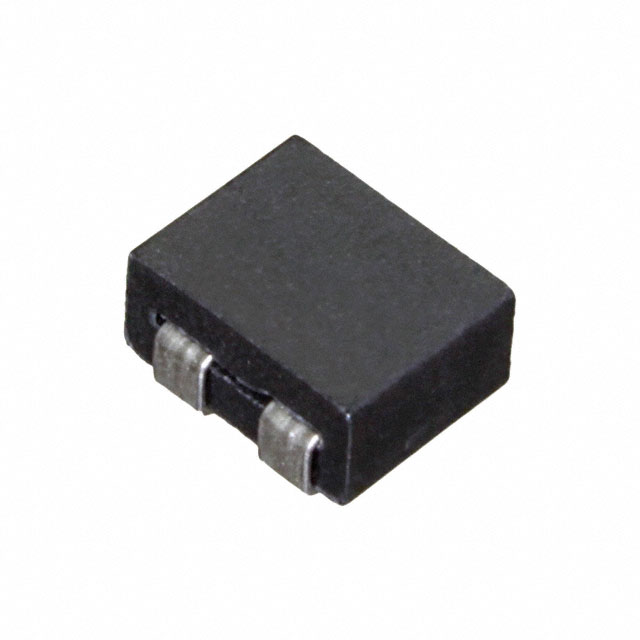

2744041447
ActiveFair-Rite Products Corp.
FERRITE BEADS COMMON MODE 35OHM 100MHZ 5A 0.0011OHM DCR T/R
2744041447
ActiveFair-Rite Products Corp.
FERRITE BEADS COMMON MODE 35OHM 100MHZ 5A 0.0011OHM DCR T/R
Description
General part information
2744041447
2 Line Common Mode Choke Surface Mount 33 Ohms @ 100 MHz 5A DCR 1.1mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2744041447 |
|---|---|
| Current Rating (Max) | 5 A |
| DC Resistance (DCR) (Max) | 1.1 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.12 in |
| Impedance | 33 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.197 in |
