FTSH-120-01-H-DV-EJ-A-P-TR
ActiveSamtec Inc.

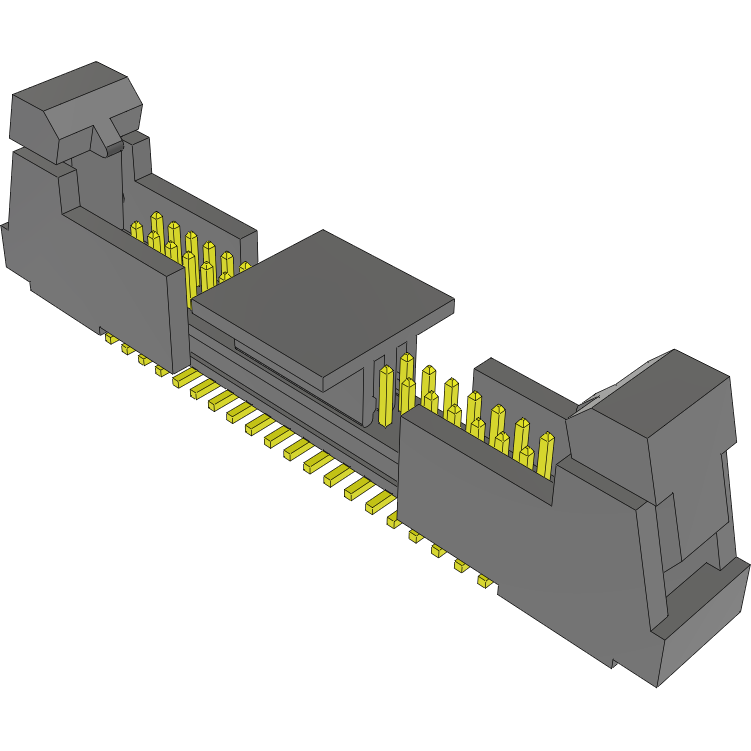

CONN EJECTOR HEADER HDR 40 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER CLAW™ T/R
FTSH-120-01-H-DV-EJ-A-P-TR
ActiveSamtec Inc.
CONN EJECTOR HEADER HDR 40 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER CLAW™ T/R
Description
General part information
FTSH-120-01-H-DV-EJ-A-P-TR
CONN EJECTOR HEADER HDR 40 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER CLAW™ T/R
Technical Specifications
Parameters and characteristics for this part
| Specification | FTSH-120-01-H-DV-EJ-A-P-TR |
|---|---|
| Connector Type | Header, Cuttable |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Length - Mating | 0.12 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Per Contact) | 3.4 A |
| Fastening Type | Eject Hooks, Latch Lock |
| Features | End Shrouds, Pick and Place, Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.099 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.05 in |
| Row Spacing - Mating | 0.05 in |
| Shrouding | Shrouded |
| Style | Board, Board or Cable |
| Termination | Solder |
