C81B-FTW-XW63
ActiveFocus LCDs

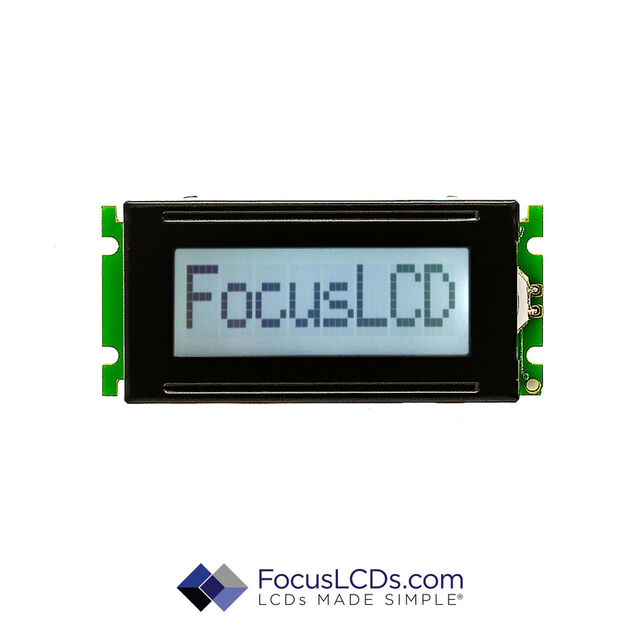

8X1 FSTN GRAY CHARACTER LCD
C81B-FTW-XW63
ActiveFocus LCDs
8X1 FSTN GRAY CHARACTER LCD
Description
General part information
C81B-FTW-XW63
Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel 53.00mm x 23.00mm x 6.30mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C81B-FTW-XW63 |
|---|---|
| Background Color | Gray |
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 7.1 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 3.4 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066 |
| Display Columns | 8 |
| Display Mode | Transflective |
| Display Rows | 1 |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Size Height | 0.8 mm |
| Dot Size Width | 0.6 mm |
| Interface | Parallel |
| Number of Characters | 8 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 6.3 mm |
| Outline Length | 53 mm |
| Outline Width | 23 mm |
| Text Color | Black |
| Viewing Area Length | 35 mm |
| Viewing Area Width | 12.6 mm |
| Voltage - Supply | 3.3 V |
