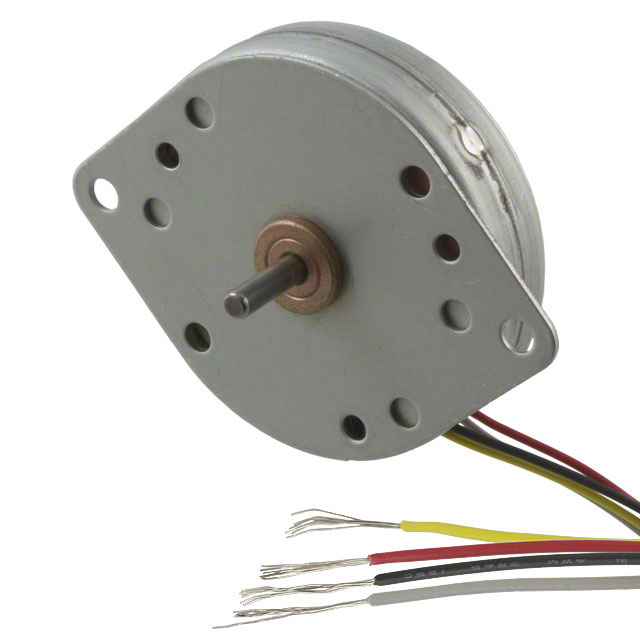

44M100D2B
ActivePortescap
STEPPER MOTOR PM BIPOLAR 12V
Deep-Dive with AI
Search across all available documentation for this part.
44M100D2B
ActivePortescap
STEPPER MOTOR PM BIPOLAR 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 44M100D2B |
|---|---|
| Accuracy | 11 % |
| Coil Resistance | 70 Ohms |
| Coil Type | Bipolar |
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 11.43 mm |
| Length - Shaft and Bearing [x] | 0.45 " |
| Mounting Hole Spacing | 1.95 in |
| Mounting Hole Spacing | 49.48 mm |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Rotor Inertia | 8.2 gcm˛ |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 1.732 " |
| Size / Dimension [diameter] | 44 mm |
| Step Angle | 3.6 ° |
| Steps per Revolution | 100 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 6.6 oz-in |
| Torque - Holding (oz-in / mNm) | 46.6 mNm |
| Type | Permanent Magnet |
| Voltage - Rated | 12 VDC |
| Weight | 0.177 lb |
| Weight | 80.29 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
44M100 Series
Bipolar Stepper Motor Permanent Magnet Frame Size 100 Step 12VDC
