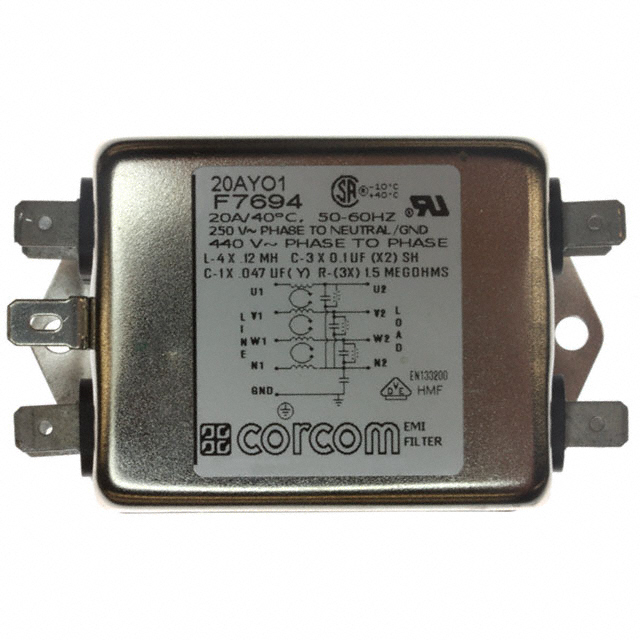

20AYO1
ObsoleteTE Connectivity Corcom Filters
LINE FILTER 20A CHASSIS MOUNT
20AYO1
ObsoleteTE Connectivity Corcom Filters
LINE FILTER 20A CHASSIS MOUNT
Description
General part information
20AYO1
Three Phase (Wye) EMC/EMI Line Filter 20 A 50/60Hz Single Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 20AYO1 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, CSA, VDE |
| Configuration | Single Stage |
| Current | 20 A |
| Filter Subtype | Wye |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC (Phase to Ground/Neutral) | 250 V |
| Voltage - Rated AC (Phase to Phase) | 440 V |
