2952910

Active

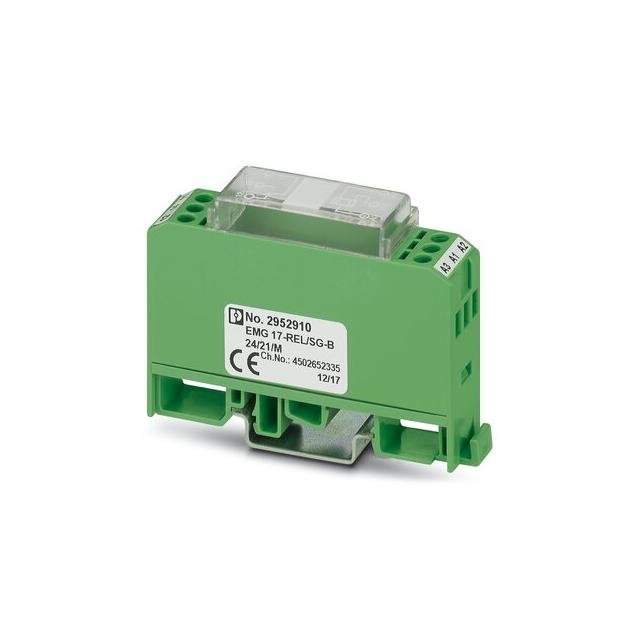

Phoenix Contact

RELAY GEN PURPOSE SPDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 5A 24V

Part	Operate Time	Features	Coil Voltage	Contact Material	Switching Voltage	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Resistance	Relay Type	Release Time	Contact Rating (Current)	Mounting Type	Contact Form	Approval Agency	Termination Style
Phoenix Contact 2952910	5 ms	Diode	24 VDC	Silver Tin Oxide (AgSnO)	125 VDC, 250 VAC	625 W, 1250 VA	50 °C	-20 C	Non Latching	3 kOhms	General Purpose	5 ms	5 A	DIN Rail	SPDT (1 Form C)	cULus, EAC, UL	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
