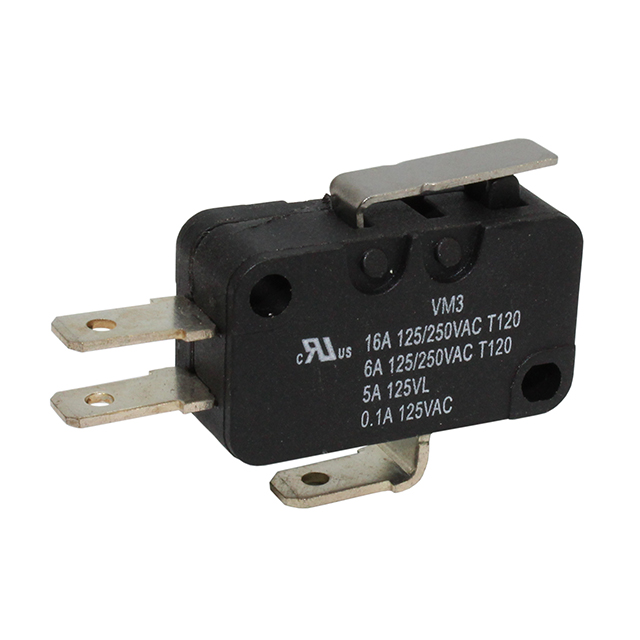

VM3AQF1802L04
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NO 16A 125V
VM3AQF1802L04
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NO 16A 125V
Description
General part information
VM3AQF1802L04
Switch SPST-NO Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | VM3AQF1802L04 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPST-NO |
| Current Rating | 16 A |
| Differential Travel (Linear) | 0.02 in |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 145 gf |
| Operating Position (Length) | 0.56 in |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Overtravel (Linear) | 0.047 in |
| Pretravel (Length) | 0.087 in |
| Quick Connect Size (0.187") | 0.187 in |
| Release Force | 60 gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
