PXCST

Active

Switchcraft Inc.

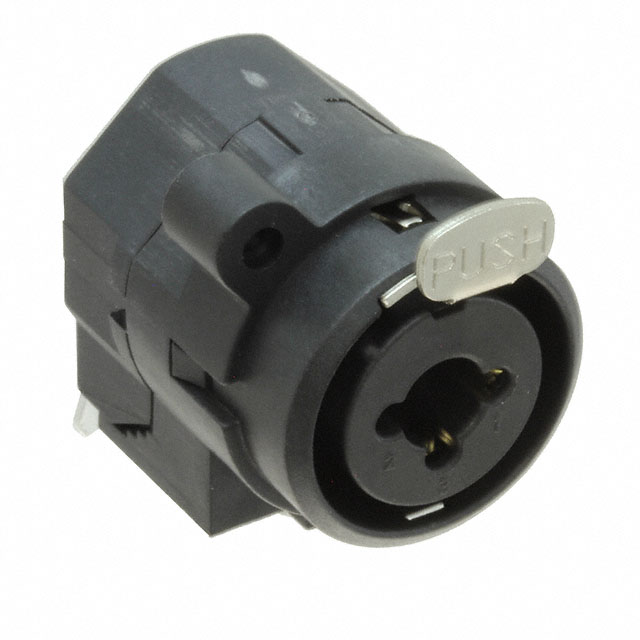

CONN 1/4" STEREO PLUG-XLR CONNECTOR ADAPTER PL/RCP 4/3 POS SOLDER ST THRU-HOLE 1/1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN 1/4" STEREO PLUG-XLR CONNECTOR ADAPTER PL/RCP 4/3 POS SOLDER ST THRU-HOLE 1/1 PORT BULK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PXCST	PXC Series

Body Color	-	Black
Connector Type	Phone Jack	Phone Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Gold	Gold
Current Rating (Amps)	7.5 A	7.5 A
Gender	Female	Female
Housing Material	Thermoplastic	Thermoplastic
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Right Angle
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Hole Size	0.937 "	0.937 "
Panel Hole Size	23.8 mm	23.8 mm
Signal Lines	Stereo	Stereo
Termination	Solder	Solder
Voltage - Rated	50 VDC	50 VDC

CONN 1/4" STEREO PLUG-XLR CONNECTOR ADAPTER PL/RCP 4/3 POS SOLDER ST THRU-HOLE 1/1 PORT BULK

Part	Housing Material	Voltage - Rated	Gender	Panel Hole Size	Panel Hole Size	Signal Lines	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Connector Type	Current Rating (Amps)	Contact Material - Plating [custom]	Body Color
Switchcraft Inc. PXCST	Thermoplastic	50 VDC	Female	0.937 "	23.8 mm	Stereo	Copper Alloy	-30 ░C	80 C	Panel Mount, Through Hole	Solder	Phone Jack	7.5 A	Gold
Switchcraft Inc. PXCRA	Thermoplastic	50 VDC	Female	0.937 "	23.8 mm	Stereo	Copper Alloy	-30 ░C	80 C	Panel Mount, Right Angle, Through Hole	Solder	Phone Jack	7.5 A	Gold	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
