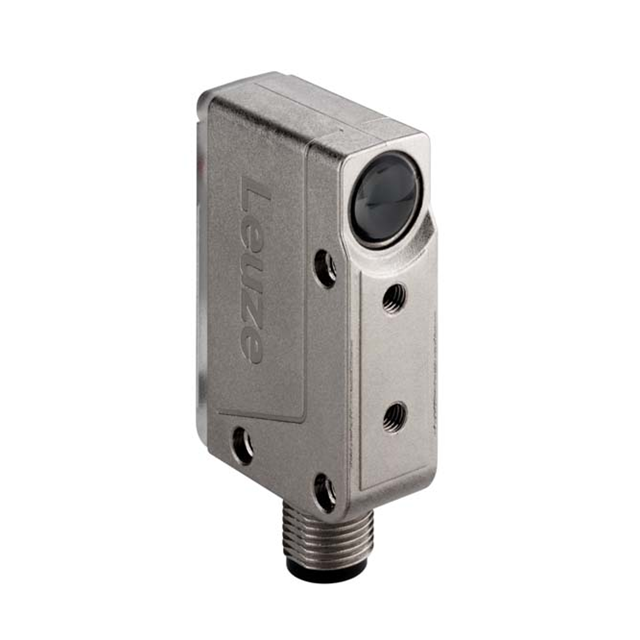

PRK18B.T2/PX-M12

Active

Leuze

POLARIZED RETRO SENSOR

Search across all available documentation for this part.

Active

Leuze

POLARIZED RETRO SENSOR

Technical Specifications

Parameters and characteristics for this part

Specification	PRK18B.T2/PX-M12

Adjustment Type	11-Turn Potentiometer, Adjustable
Connection Method	Connector, M12
Ingress Protection	IEC 60947-5-2 IP67, IEC 60947-5-2 IP69K
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON
Response Time	333 µs
Sensing Distance [Max]	4.8 m
Sensing Distance [Max]	188.976 "
Sensing Distance [Min]	0 mm
Sensing Distance [Min]	0 "
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

POLARIZED RETRO SENSOR

Part	Adjustment Type	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Output Configuration	Response Time	Connection Method	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]
Leuze PRK18B.T2/PX-M12	11-Turn Potentiometer, Adjustable	4.8 m	188.976 "	0 mm	0 "	PNP - Dark-ON	333 µs	Connector, M12	Red LED	-40 °C	60 °C	IEC 60947-5-2 IP67, IEC 60947-5-2 IP69K	Retroreflective	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 306.90

General part information

Retroreflective Optical Sensor 0" ~ 188.976" (0mm ~ 4.8m) PNP - Dark-ON
