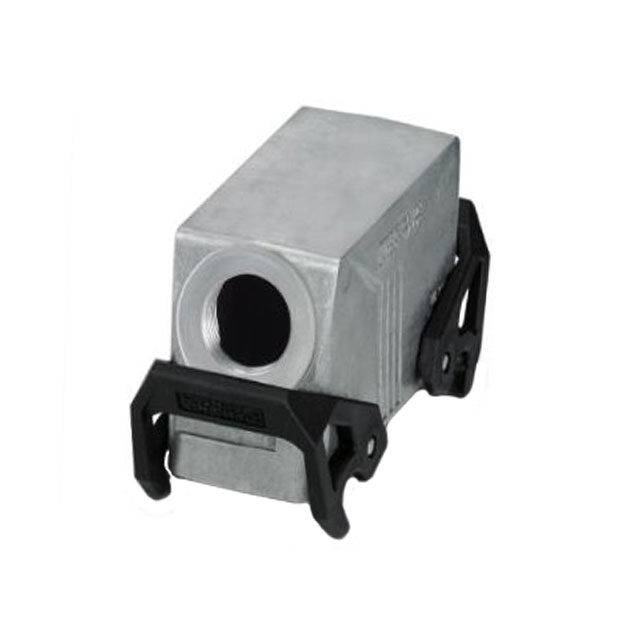

Specification	1412737

Connector Type	Hood
Features	Salt Water Resistant
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Lock Location	Locking Clip (2) on Hood
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	B16
Size / Dimension Height	2.362 in
Size / Dimension Length	3.681 in
Size / Dimension Width	1.732 in
Style	Side Entry
Thread Size	PG21
