DCDA37SSB
ActiveCinch Connectivity Solutions

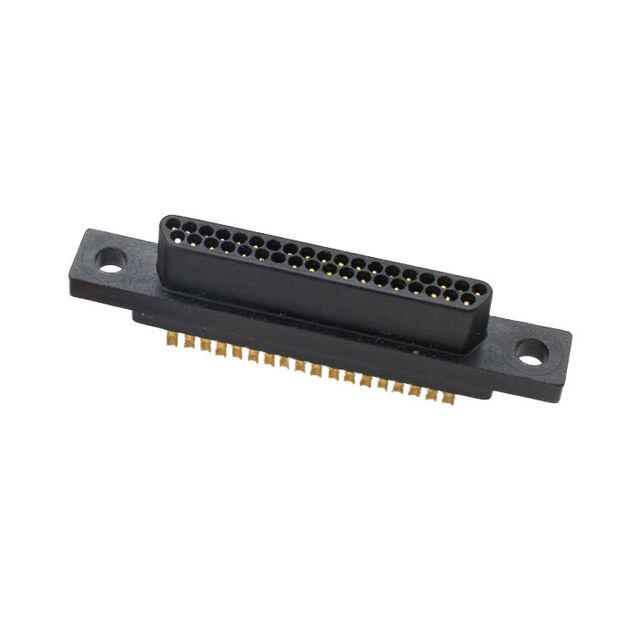

D SUB CONNECTOR, MICRO D, RECEPTACLE, DURA-CON SERIES, 37 CONTACTS, SOLDER CUP
DCDA37SSB
ActiveCinch Connectivity Solutions
D SUB CONNECTOR, MICRO D, RECEPTACLE, DURA-CON SERIES, 37 CONTACTS, SOLDER CUP
Description
General part information
DCDA37SSB
37 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | DCDA37SSB |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.043 |
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 3 A |
| Dielectric Material | Glass Filled, Polyester |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Panel Mount |
| Number of Positions | 37 pos |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Plastic |
| Shell Material, Finish | Plastic |
| Termination | Solder Cup |
