ZH2-15.0-0-FSP-SM
ObsoleteTE Connectivity Raychem Cable Protection

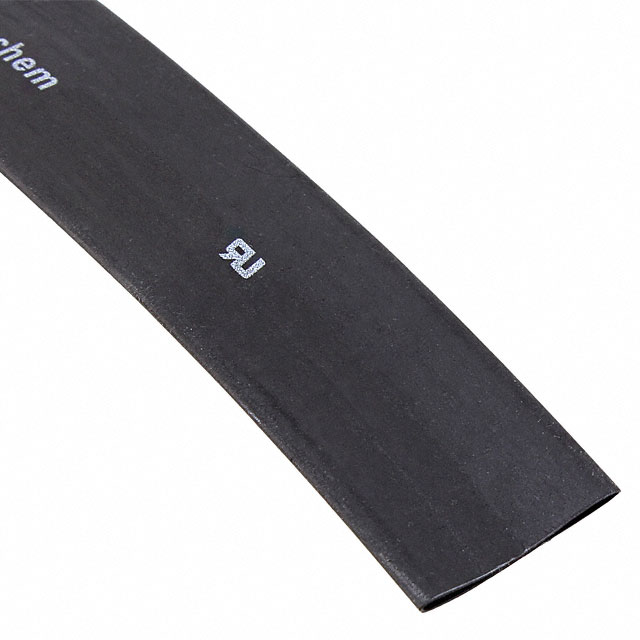

HEAT SHRINK TUBING BLK .618" 1M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZH2-15.0-0-FSP-SM
ObsoleteTE Connectivity Raychem Cable Protection
HEAT SHRINK TUBING BLK .618" 1M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZH2-15.0-0-FSP-SM |
|---|---|
| Color | Black |
| Features | Flame Retardant |
| Inner Diameter - Recovered | 7.49 mm |
| Inner Diameter - Recovered | 0.295 in |
| Inner Diameter - Supplied | 0.618 in |
| Inner Diameter - Supplied | 15.7 mm |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Material | Halogen Free, Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -30 ░C |
| Recovered Wall Thickness | 0.027 " |
| Recovered Wall Thickness | 0.69 mm |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio | 2 to 1 |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZH2-15.0-0-FSP-SM
Heat Shrink Tubing, Flexible 0.618" (15.70mm) 2 to 1 Black 3.28' (1.00m)
